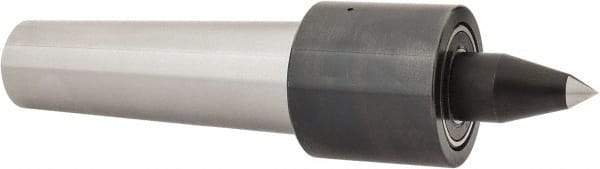

Riten - MT5 Taper Shank, 2-3/8" Head Diam 2,200 Lb Capacity Live Center - 2,500 Max RPM, 2-1/2" Head Length, 1/2" Point Diam, 2" Point Len, 900 Lb Max Workpc, Tracer Point
Item #: 00090084
Brand: Riten
Model #: 44905
Exact Tooling IR#: 04
Features and Benefits
Tracer points, also known as CNC points, are used with large workpieces in CNC and manual turning operations.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 900.00 |
| Point Style | Tracer |
| Point Diameter (Inch) | 1/2 |
| Point Diameter (Decimal Inch) | 0.5000 |
| Point Length (Inch) | 2 |
| Accuracy (Decimal Inch) | 0.000200 |
| Load Capacity (Lb.) | 2200.00 |
| Head Diameter (Inch) | 2-3/8 |
| Head Length (Inch) | 2-1/2 |
| Gage Line Clearance (Inch) | 1/4 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 2500 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
