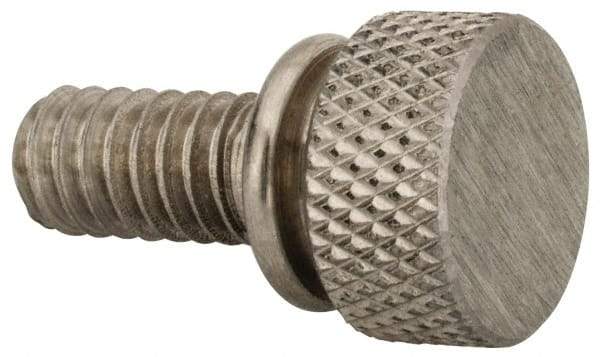

Electro Hardware - 1/4-20 Knurled Shoulder Grade 303 Stainless Steel Thumb Screw - 7/8" OAL, 1/2" Head Diam x 1/4" Head Height, Uncoated
Item #: 00042085
Brand: Electro Hardware
Model #: THS1137M07F16
Exact Tooling IR#: 04
Features and Benefits
Knurled head types have a pattern of ridges that allow for easy gripping and tightening by hand. Knurled head types are common in applications requiring frequent fastening and unfastening.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Thread Size | 1/4-20 |
| Head Type | Knurled |
| Shoulder Type | Shoulder |
| Material | Stainless Steel |
| Material Grade | Grade 303 |
| Overall Length (Inch) | 7/8 |
| Finish/Coating | Uncoated |
| Head Diameter (Decimal Inch) | 0.5000 |
| Head Diameter (Inch) | 1/2 |
| Head Height (Decimal Inch) | 0.2500 |
| Head Height (Inch) | 1/4 |
| Thread Standard | UNC |
| Fastener Standard | QQ-S-763 |
| Shoulder Length (Inch) | 1/8 |
| Shoulder Diameter (Decimal Inch) | 0.4370 |
