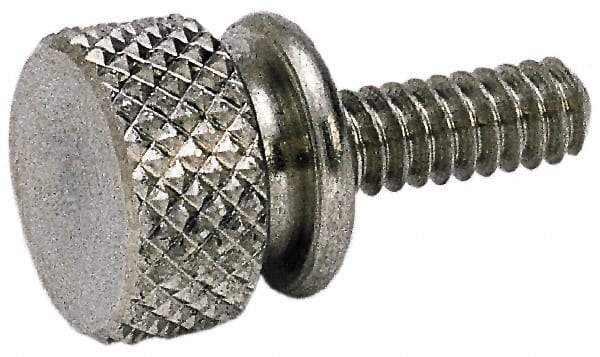

Electro Hardware - #4-40 Knurled Shoulder Grade 2 Steel Thumb Screw - 11/16" OAL, 3/8" Head Diam x 3/16" Head Height, Zinc-Plated Finish
Item #: 00041806
Brand: Electro Hardware
Model #: THS1003M10F21
Exact Tooling IR#: 04
Features and Benefits
Knurled head types have a pattern of ridges that allow for easy gripping and tightening by hand. Knurled head types are common in applications requiring frequent fastening and unfastening.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Thread Size | #4-40 |
| Head Type | Knurled |
| Shoulder Type | Shoulder |
| Material | Steel |
| Material Grade | Grade 2 |
| Overall Length (Inch) | 11/16 |
| Overall Length (Decimal Inch) | 0.6875 |
| Finish/Coating | Zinc-Plated |
| Head Diameter (Decimal Inch) | 0.3750 |
| Head Diameter (Inch) | 3/8 |
| Head Height (Decimal Inch) | 0.1875 |
| Head Height (Inch) | 3/16 |
| Thread Standard | UNC |
| Fastener Standard | ASTM B633; QQ-S-633; Type 1 |
| Shoulder Length (Inch) | 1/8 |
| Shoulder Diameter (Decimal Inch) | 0.3120 |
