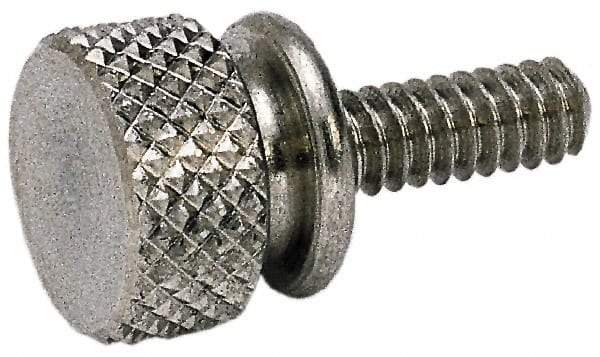

Electro Hardware - #10-32 Knurled Shoulder Grade 1 & F Brass Thumb Screw - 13/16" OAL, 7/16" Head Diam x 3/16" Head Height, Nickel-Plated Finish
Item #: 00041731
Brand: Electro Hardware
Model #: THS1097M01F07
Exact Tooling IR#: 04
Features and Benefits
Knurled head types have a pattern of ridges that allow for easy gripping and tightening by hand. Knurled head types are common in applications requiring frequent fastening and unfastening.
Brass is an alloy of copper and zinc that is durable, nonmagnetic and conductive.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Thread Size | #10-32 |
| Head Type | Knurled |
| Shoulder Type | Shoulder |
| Material | Brass |
| Material Grade | Grade 1; Grade F |
| Overall Length (Inch) | 13/16 |
| Overall Length (Decimal Inch) | 0.8125 |
| Finish/Coating | Nickel-Plated |
| Head Diameter (Decimal Inch) | 0.4375 |
| Head Diameter (Inch) | 7/16 |
| Head Height (Decimal Inch) | 0.1875 |
| Head Height (Inch) | 3/16 |
| Thread Standard | UNC |
| Fastener Standard | QQ-B-626B Comp 22; QQ-N-290A |
| Shoulder Length (Inch) | 1/8 |
| Shoulder Diameter (Inch) | 3/8 |
| Shoulder Diameter (Decimal Inch) | 0.3750 |
