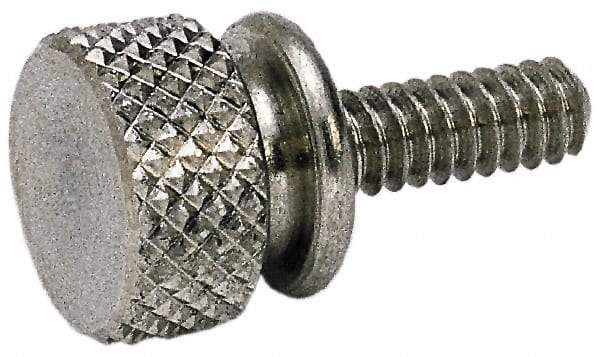

Electro Hardware - #10-32 Knurled Shoulder Aluminum Thumb Screw - 13/16" OAL, 7/16" Head Diam x 3/16" Head Height, Uncoated
Item #: 00041574
Brand: Electro Hardware
Model #: THS1097M04F16
Exact Tooling IR#: 04
Features and Benefits
Knurled head types have a pattern of ridges that allow for easy gripping and tightening by hand. Knurled head types are common in applications requiring frequent fastening and unfastening.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Thread Size | #10-32 |
| Head Type | Knurled |
| Shoulder Type | Shoulder |
| Material | Aluminum |
| Overall Length (Inch) | 13/16 |
| Overall Length (Decimal Inch) | 0.8125 |
| Finish/Coating | Uncoated |
| Head Diameter (Decimal Inch) | 0.4375 |
| Head Diameter (Inch) | 7/16 |
| Head Height (Decimal Inch) | 0.1875 |
| Head Height (Inch) | 3/16 |
| Thread Standard | UNC |
| Fastener Standard | QQ-A-225A Comp 2; T-3 |
| Shoulder Length (Inch) | 1/8 |
| Shoulder Diameter (Inch) | 3/8 |
| Shoulder Diameter (Decimal Inch) | 0.3750 |
