NIT-200 Power Chuck

4-jaw through-hole power chuck
(adapter excluded)
  • All sliding surfaces are hardened and ground for accurate actual running and long service repeatability. Lubrication nipple in each master jaw.
  • Master jaw : 1.5mmx60° serration.
  • Mounting : Adaptor mounting to fit with DIN, ISO, BS, ASA B5.9 type A spindles.
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
Through-Hole
(mm)
Plunger
Stroke
(mm)
Jaw stroke
(In Dia.)
(mm)
Max. Pull
Force
(kgf)
Max.
Gripping
Force
(kgf)
Max.
Operating
Pressure
(kgf / cm²)
Max.
Speed
(r.p.m.)
Weight
(kg)
Moment Of
Inertia
I
(kg.m²)
Matching
Cylinder
Matching
Hard Jaw
Matching
Soft Jaw
Gripping
O.D. Range
(mm)
SPEC Part Number Price Each
Ø45 12 5.5 2243 5812 28.5 4500 13.7 0.058 M1246 HJ06 HC06 Ø15-Ø169 NIT-206 Call or Email
Ø52 16 7.4 3558 9075 26.5 3600 24 0.177 M1552 HJ08 HC08 Ø20-Ø210 NIT-208 Call or Email
Ø75 19 8.8 4385 11319 27.5 3200 36 0.324 M1875 HJ10 HC10 Ø25-Ø254 NIT-210 Call or Email
Ø91 23 10.6 5812 14990 27.5 2700 58.5 0.763 M2091 HJ12 HC12 Ø30-Ø304 NIT-212 Call or Email
Ø117.5 23 10.6 7240 18355 23.5 1900 114 2.331 M2511 HJ15 HC15 Ø50-Ø381 NIT-215 Call or Email
Ø117.5 23 10.6 7240 18355 23.5 1500 140 3.798 M2511 HJ15 HC15 Ø50-Ø450 NIT-218 Call or Email
Ø205 26 12 9177 23861 26.5 1000 284 15.2 ML3320 HJ24-1 HC24-1 Ø150-Ø610 NIT-224 Call or Email

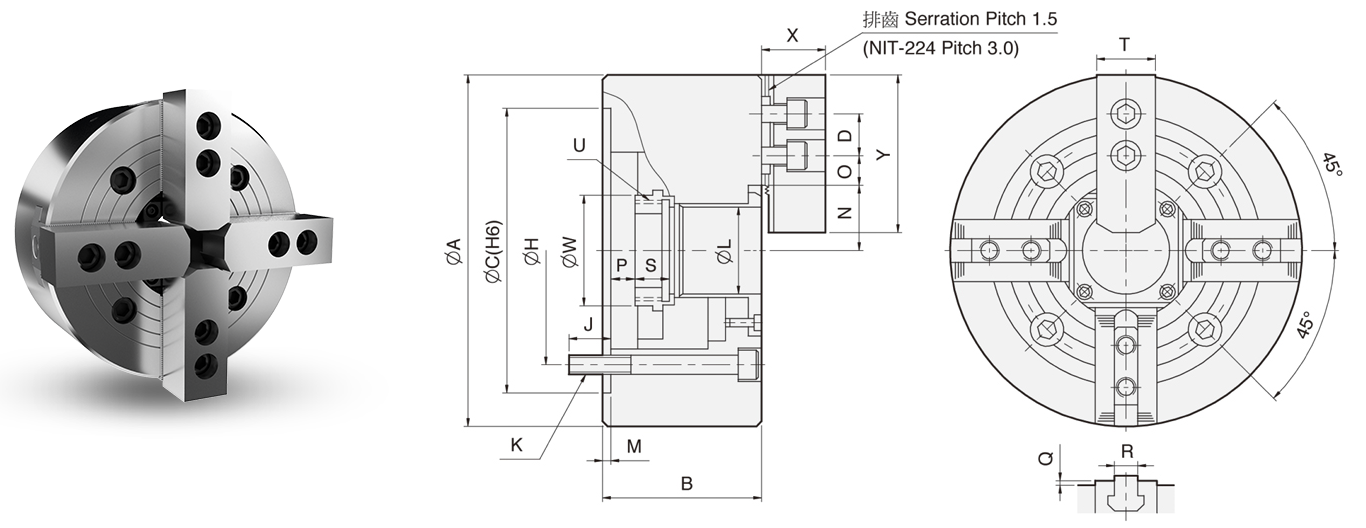

A B C
(H6)
D H J K L M N
max.
O
max.
O
min.
P
max.
P
min.
Q R S T U
max.
W X Y DIM Part Number Price Each
169 81 140 20 104.78 16 4-M10x80 45 5 32 22.75 9.25 11 -1 2 12 19 31 M55x2 60 37 73 NIT-206 Call or Email
210 91 170 25 133.35 20 4-M12x90 52 5 38.7 29.75 11.75 14.5 -1.5 2 14 20.5 35 M60x2 66 38 95 NIT-208 Call or Email
254 100 220 30 171.45 22 4-M16x100 75 5 51 33.75 14.25 8.5 -10.5 2 16 25 40 M85x2 94 43 110 NIT-210 Call or Email
304 110 220 30 171.45 23 4-M16x110 91 6 61.3 45.75 15.75 8 -15 2 21 28 50 M100x2 108 51 130 NIT-212 Call or Email
381 133 300 43 235 30 4-M20x135 117.5 6 82 45.25 15.25 7 -16 5 22 43 62 M130x2 139 66 165 NIT-215 Call or Email
450 133 300 43 235 30 4-M20x135 117.5 6 82 79.75 15.25 7 -16 5 22 43 62 M130x2 139 66 165 NIT-218 Call or Email
610 147 520 60 463.6 35 8-M24x150 205 6 139.9 87.5 24.5 16 -10 5 25 38 64 M215x3 230 73 180 NIT-224 Call or Email
