Type L Bushings

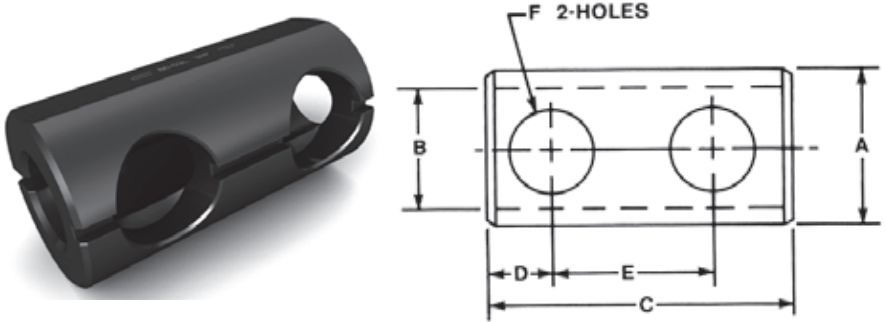

TYPE L BUSHINGS
“L” style bushings are used to adapt drill, boring bars and shank tools to any size in a standard turret or toolholder.
All “L” style bushings have set screw clearance holes opposite the slot and have a split with a flat on the O.D.
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
A
O.D.
C
OAL
D E F No Of Holes B
I D
Part Number
1-1/2" 3" 3/4" 1-5/8" 7/8" 2" 3/8" TBL-15-0375
1/2" TBL-15-0500
5/8" TBL-15-0625
3/4" TBL-15-0750
1" TBL-15-1000
1-1/4" TBL-15-1250
1-3/4" 3" 3/4" 1-5/8" 7/8" 2" 1/2" TBL-17-0500
5/8" TBL-17-0625
3/4" TBL-17-0750
1" TBL-17-1000
1-1/4" TBL-17-1250
1-1/2" TBL-17-1500
2-1/4" 4-1/2" 7/8" 2" 1" 2" 5/8" TBL-22-0625
3/4" TBL-22-0750
1" TBL-22-1000
1-1/4" TBL-22-1250
1-1/2" TBL-22-1500
1-3/4" TBL-22-1750
2" TBL-22-2000
2-3/4" 4-1/2" 7/8" 2" 1" 2" 3/4" TBL-27-0750
1" TBL-27-1000
1-1/4" TBL-27-1250
1-1/2" TBL-27-1500
1-3/4" TBL-27-1750
2" TBL-27-2000
2-1/4" TBL-27-2250
