HJ Hard Jaws

Hard jaw for hydraulic power chuck
  • Hard jaw for hydraulic power chucks.
  • Hard jaw for CNC lathe.
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

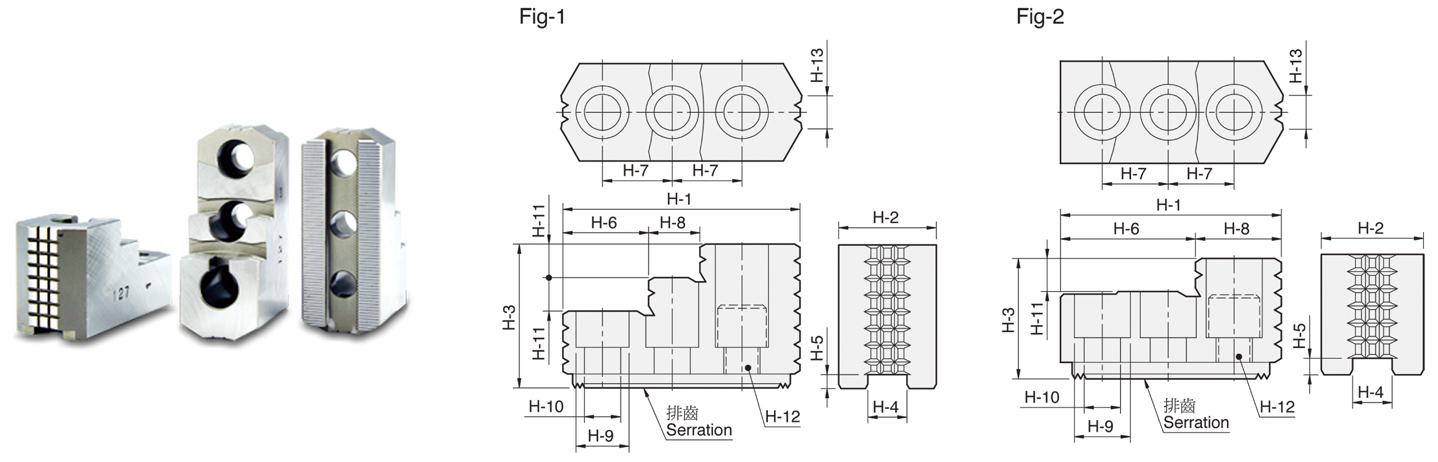

H-1 H-2 H-3 H-4 H-5 H-6 H-7 H-8 H-9 H-10 H-11 H-12 H-13 Serration
Pitch
Reference Matching
Chuck
3 Jaw
Weight
(kg)
DIM Part Number Price Each
53 23 27.5 10 4 30.5 14 22.5 13.5 8.5 10 M8 6 1.5x60° Fig-2 N-204, N-205 0.4 HJ05 Call or Email
67 31 35 12 5 39.5 20 27.5 17 11 12 M10 11 1.5x60° Fig-2 N-206, V-206 1.0 HJ06 Call or Email
86 35 51 14 5 31 25 18 19 13 12 M12 12 1.5x60° Fig-1 N-208, V-208 1.9 HJ08 Call or Email
99.5 40 54 16 5 43 30 17 19 13 13 M12 15 1.5x60° Fig-1 N-210, V-210 2.9 HJ10 Call or Email
103 50 52 21 4 62.5 30 40.5 25 17 17 M16 30 1.5x60° Fig-2 N-212 3.5 HJ12 Call or Email
103 50 52 18 5 62.5 30 40.5 22 15 17 M14 30 1.5x60° Fig-2 V-212 3.6 HJ12-1 Call or Email
149 62 86 22 8 63 43 34 32 21 20 M20 40 1.5x60° Fig-1 N-215, N-218 9.6 HJ15 Call or Email
149 62 86 25.5 5 63 43 34 32 21 20 M20 40 1.5x60° Fig-1 V-215, V-218 9.5 HJ15-1 Call or Email
159.5 80 90 25 9 104.5 50 55 32 21 40 M20 55 3.0x60° Fig-2 N-220, N-224, N-232
V-221, V-224, V-232
14.3 HJ24-1 Call or Email
140 60 75 25.5 6 50.35 38 49.86 31 21 19 M20 21.1 3/32"x90° Fig-1 PB-ES600 7.2 PB600 Call or Email
220 75 85 30 6.5 130 62 90 38 26 30 M25 35 3/32"x90° Fig-2 PB-ES850 20.2 PB850 Call or Email
