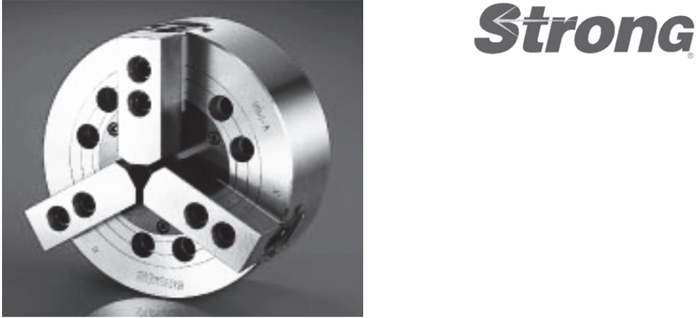

VA-200 Series 3 Jaw Closed Center Chucks

VA-200 SERIES 3 JAW CLOSED CENTER CHUCKS
1.5mm x 60° Serrations Power Chucks
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
Chuck Size Chuck Model Chuck Dia. Mount Part Number Price Each Chuck Cross Reference
6” V206 6.654” Flatback K-206-V-B $1,026.00 N06, HC-06
A2-4 K-206A05-V-B $1,206.00
A2-5 K-206A06-V-B $1,206.00
8” V208 8.268” Flatback K-208-V-B $1,345.50 N08, HC-08
A2-5 K-208A05-V-B $1,570.50
A2-6 K-208A06-V-B $1,570.50
10” V210 10.000” Flatback K-210A-V-B $1,696.50 N10, HC-10
A2-6 K-210A06-V-B $2,016.00
A2-8 K-210A08-V-B $2,016.00
12” V212 11.969” A2-6 K-212A06-V-B $2,808.00 HC-12
A2-8 K-212A08-V-B $2,808.00
15” V215 15.000” A2-8 K-215A08-V-B $6,106.50 -
A2-11 K-215A11-V-B $6,106.50
18” V218 17.717” A2-8 K-218A08-V-B $8,239.50 -
A2-11 K-218A11-V-B $8,239.50
Model Jaw Stroke (mm) Plunger Stroke (mm) Max. Pull Force (kgf) Max. Gripping Force (kgf) Max. Oper. Pressure (kgf/cm2) Max. Speed Weight (kg) Moment of Inertia (kg?m2) Matching Cylinder Gripping O.D. Range (mm)
V-206 9.2 20 1835 5353 26.5 5200 12 0.045 MS105C Ø18~Ø165
V-208 9.7 21 2549 7648 25.5 4500 23 0.137 MS125C Ø26~Ø210
V-210 8.8 25 2957 11013 28.6 4000 34.5 0.3 MS125C Ø26~Ø254
V-212 10.5 30 4181 15907 27.5 3300 59.5 0.725 MS150C Ø26~Ø304
V-215 16 35 8362 25391 32.6 3000 101 1.8 MS200C Ø68~Ø381
V-218 16 35 8362 25391 32.6 2700 116 2.9 MS200C Ø130~Ø450
V-221 16 35 8362 27838 32.6 1940 181 6.2 MS200C Ø65~Ø530
V-224 16 35 8362 27838 32.6 1760 216 7 MS200C Ø152~Ø610
V-232 18.6 35 8362 27838 32.6 600 365 27.3 MS200C Ø100~Ø810
