Rotary Hydraulic Cylinders

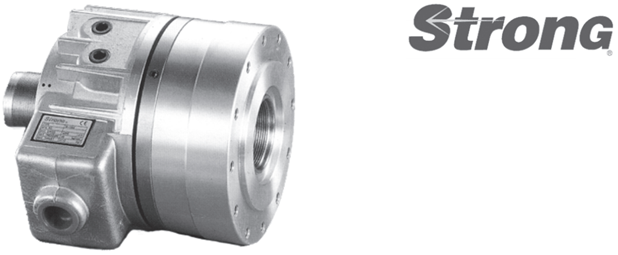

ROTARY HYDRAULIC CYLINDERS
Super High Speed Through Hole
Strong large thru-hole, high speed rotary hydraulic cylinders are for use with all thru-hole power chucks with speeds up to 7000RPM. All cylinders come with hydraulic pressure lock system and a built-in check valve.
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
Piston Area Draw Bar Pull Force
MODEL Piston Dia Push Size Pull Side Piston Stroke Push Side Pull Side Max Op. Pressure Max RPM Moment Inertia Weight Total Leakage Part Number Price
M1036 105 71 68.5 15 24.8(2529) 24(2447) 40.8 8000 0.011 8.6 3.0 K-CYM1036-B $1,840.00
M1236 125 100 89 15 38(3875) 33(3365) 40.8 7000 0.019 13.0 3.0 K-CYM1236-B $1,870.00
M1246 125 100 89 15 38(3875) 33(3365) 40.8 7000 0.019 12.0 3.0 K-CYM1246-B $1,870.00
M1546 155 161 150 22 60(6118) 56(5710) 40.8 6200 0.052 18.0 3.9 K-CYM1546-B $2,465.00
M1552 155 161 150 22 60(6118) 56(5710) 40.8 6200 0.052 16.8 3.9 K-CYM1552-B $2,465.00
M1868 180 198 183 25 75(7546) 69(7036) 40.8 4700 0.095 28.0 4.2 K-CYM1868-B $3,060.00
M1875 180 198 183 25 75(7546) 69(7036) 40.8 4700 0.095 26.0 4.2 K-CYM1875-B $3,060.00
M2091 205 252 234 30 94(9585) 94(9585) 40.8 3800 0.15 37.0 4.5 K-CYM2091-B $3,825.00
M2511 250 348 336 23 124(12644) 120(12236) 40.8 2800 0.45 57.0 7.0 K-CYM2511-B $6,120.00
