Expanding Collets Assemblies (-2,-4,-8,-26 Collets)

EXPANDING COLLET ASSEMBLIES
-2 Collets, Machinable Down to .375”
For 5C, 16C, 2J and 3J Collets
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
-2 COLLET
Machinable Down to .375” Replacement Screws
Dia. Length Part Number UsesRod Assembly Series: Part Number
1” 1” RV-521 1-2 RV-572
2” RV-522 2-2 RV-576
3” RV-523 2-2
1-1/4” 1” RV-524 1-2 RV-572
1-1/2” 1” RV-526 1-2
2” RV-527 2-2 RV-576
2” 1” RV-528 1-2 RV-572
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
-2 SLEEVE
Spindle Part No.
5C RV-590
16C RV-591
2J RV-592
3J RV-593
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
-2 ROD ASSEMBLY
Series 1-2 Series 2-2
Spindle Part Number Part Number
5C RV-583 RV-583L
16C RV-584 RV-584L
2J RV-585 RV-585L
3J RV-585-3 RV-585-3L
EXPANDING COLLET ASSEMBLIES

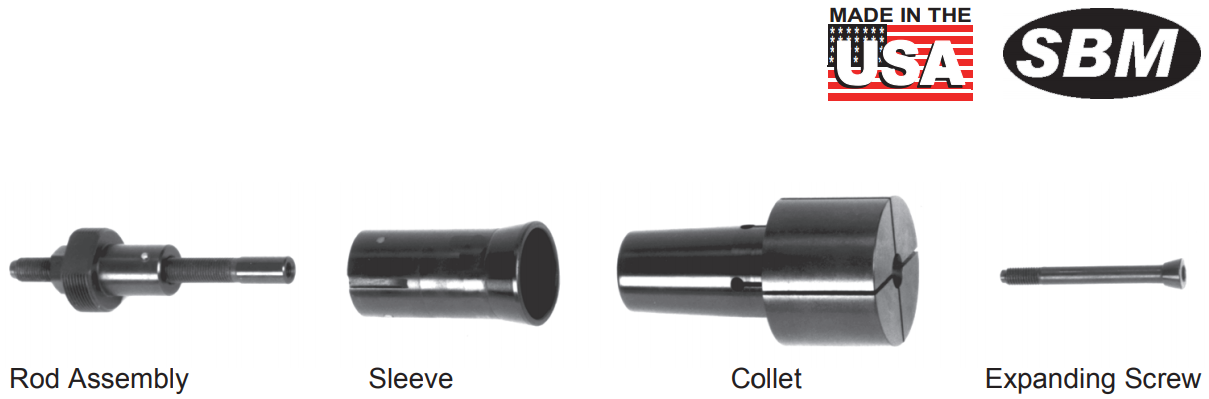

-4 Collets, Machinable Down to .500”
Expanding Collet Assembly Consists Of:
1-Collet
1-Expanding Screw
1-Sleeve
1-Rod Assembly
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
-4 COLLETS
Machinable Down to .500” Replacement Screws
Dia. Length Part Number Uses Rod Assembly Series: Part Number
1-1/2” 1-1/2” RV-541 -4 -1 RV-573
2” RV-542 -4 -1
3” RV-543 -4 -2 RV-578
4” RV-543A -4 -3
2” 1-1/2” RV-544 -4 -1 RV-573
2” RV-545 -4 -1
3” RV-546 -4 -2 RV-578
4” RV-547 -4 -3
5” RV-547A -4 -4
6” RV-547B -4 -4
2-1/2” 1-1/2” RV-548 -4 -1 RV-573
2” RV-549 -4 -1
3” RV-550 -4 -2 RV-578
4” RV-551 -4 -3
3” 1-1/2” RV-552 -4 -1 RV-573
2” RV-553 -4 -1
3” RV-554 -4 -2 RV-578
3-1/2” 1-1/2” RV-555 -4 -1 RV-573
3” RV-556 -4 -2 RV-578
4” 1-1/2” RV-557 -4 -1 RV-573
3” RV-557A -4 -2 RV-578
4-1/2” 1-1/2” RV-558 -4 -1 RV-573
5-1/4” 1-1/2” RV-559 -4 -1
6” 1-1/2” RV-560 -4 -1
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
SLEEVE
Spindle Part Number
5C

16C


2J


3J
RV-596

RV-597


RV-598


RV-599
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
ROD ASSEMBLY (INCLUDES SCREW)
Series -4 -1 Series -4 -2
Spindle Type Screw and 4-1/2” Rod Long Screw and 4-1/2” ROD
5C

16C

2J

3J
RV-586

RV-587


RV-588


RV-589
RV-586L

RV-587L


RV-588L


RV-589L
Series -4 -3 Series -4 -4
Spindle Type Long Screw and 5-3/4” ROD Long Screw and 8-3/4” ROD
5C

16C

2J

3J
RV-586XL

RV-587XL


RV-588XL


RV-589XL
RV-586XXL

RV-587XXL


RV-588XXL


RV-589XXL
EXPANDING COLLET ASSEMBLIES

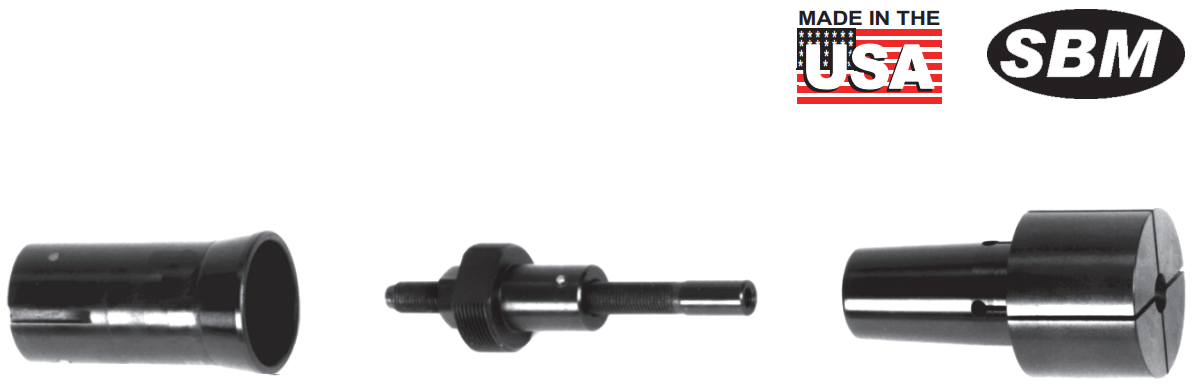

-8 COLLETS
Machinable Down to .500”
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
-8 COLLETS
Machinable Down to .500” Replacement Screws
Dia. Length Part Number Uses Rod Assembly Series: Part Number
2” 2” RV-822 -8-1 RV-ES38L
3” RV-823 -8-1
4” RV-824 -8-1
5” RV-825* -8-2 RV-ES38XL
6” RV-826* -8-2
2-1/2” 2” RV-82.52 -8-1 RV-ES38L
3” RV-82.53 -8-1
4” RV-82.54 -8-1
3” 2” RV-832 -8-1
3” RV-833 -8-1
3-1/2” 2” RV-83.52 -8-1
3” RV-83.53 -8-1
4” 2” RV-842 -8-1
3” RV-843 -8-1
4-1/2” 2” RV-84.52 -8-1
3” RV-84.53 -8-1
5-1/4” 2” RV-85.252 -8-1
6” 1-1/2” RV-862 -8-1
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
-8 SLEEVES
Spindle Type Part Number
16C RV-SL8-16C
3J RV-SL8-3J
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
-8 ROD ASSEMBLY
Series -8-1 Series -8-2
Part Number Part Number
RV-RA38L-16C RV-RA38XL-16C
RV-RA38L-3J RV-RA38XL-3J
EXPANDING COLLET ASSEMBLIES

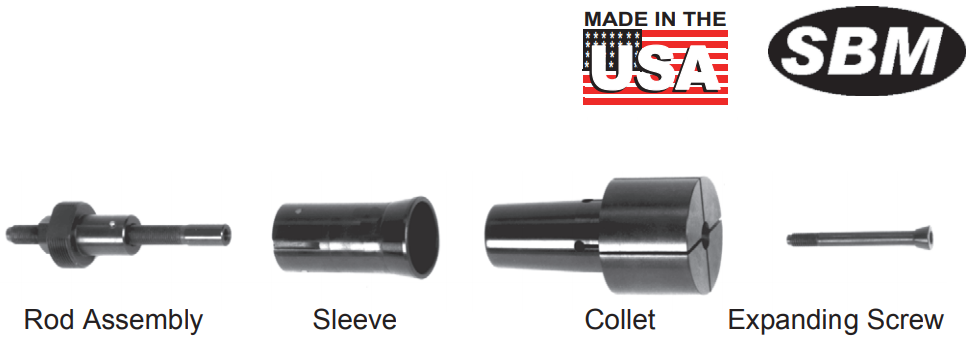

-26 COLLETS
Machinable Down to .250”
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
-26 COLLETS
Machinable Down to .250” Replacement Screws
Dia. Length Part No. Part No.
1/2” 1” RV-510 RV-571
1” 1” RV-511
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
Sleeve Rod Assembly
Spindle Part No. Part No.
5C

16C

2J

3J
RV-590

RV-591


RV-592


RV-593
RV-580

RV-581


RV-582


RV-582-3
ACCESSORIES
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
NUTS
Part Number
RV-16C
RV-2J
RV-3J
RV-5C
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
COLLET SEPARATORS
Part Number
RV-CS-16C
RV-CS-3J
RV-CS-5C
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
THREADED RODS
All Rods have 3/8” threads
Length of Rod Used In System Part Number
4” -26 RV-R6
5” RV-R6L
4 1/2” -2 RV-R10
5 3/4” RV-R10L
4-1/2” -4 RV-R25
5-3/4” RV-R25L
8-3/4” RV-R25XL
