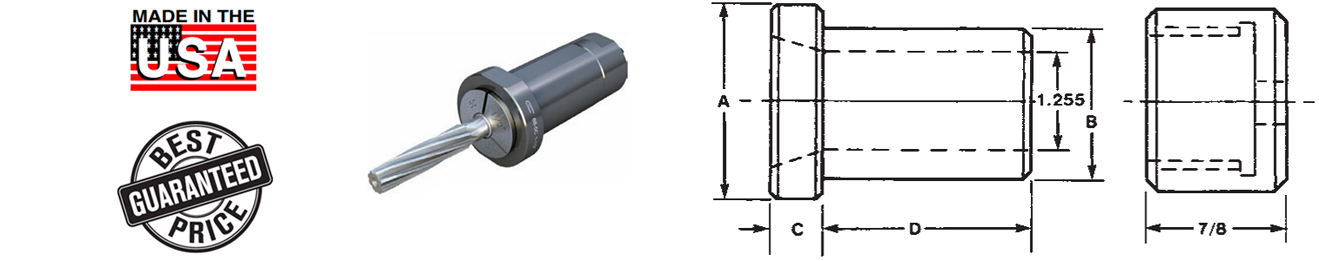

5C Collet Holder Bushing

ā€œ5Cā€ Collet Holder Bushing
This brand new 5C Collet Holder Bushing is used to adapt all kinds of Drills, Reamers, Counter Bores and End Mills to your CNC machines. Adds flexibility, versatility and reduces set-up time. Includes back locking nut and screw to hold your 5C Collet in place.
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
A C D OD Nut Size B Part Number
2" 1/2" 2-1/4" 1-31/64" 1-1/2" CNC 885C 1-1/2"
2-1/4" 1/2" 2-1/4" 1-11/15" 1-3/4" CNC 885C 1-3/4"
2-1/2" 1/2" 2-1/4" 1-15/16" 2" CNC 885C 2"
3" 1/2" 2-1/4" 2-7/16" 2-1/2" CNC 885C 2-1/2"

To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
A C D OD Nut Size B Part Number
2" 1/2" 2-1/4" 1-31/64" 40mm CNC 885C 40mm
2-1/4" 1/2" 2-1/4" 1-11/15" 45mm CNC 885C 45mm
2-1/2" 1/2" 2-1/4" 1-15/16" 50mm CNC 885C 50mm
3" 1/2" 2-1/4" 2-7/16" 65mm CNC 885C 65mm
