ROUND JAWS - 1/16" x 90° Serrations

FOR USE ON: SMW Autoblok, Rohm, Pratt Burnerd & Other Chucks
  • 1/16" x 90° serrations
  • Round Jaws allow for complete gripping of workpiece
  • Oversized jaws available
  • Ideal for thin-walled or irregular shaped workpieces.
  • Can be machined to fit workpiece
  • Max. length of serrations: 5.75"
  • Special "J" dimensions available
  • Available in Aluminum, Cast Iron & Steel
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

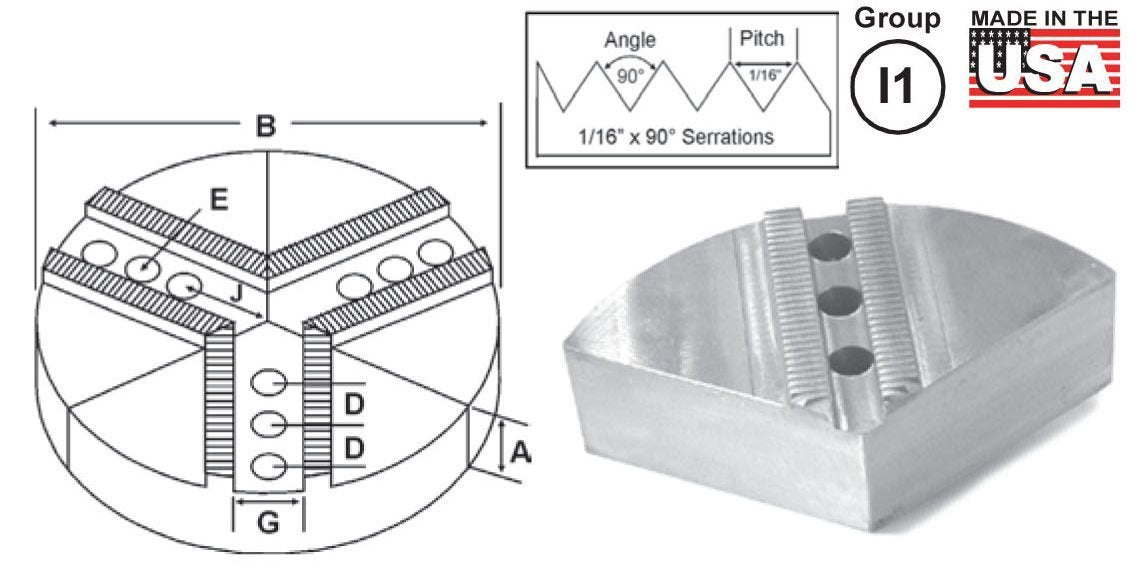

Critical Dimensions ALUMINUM CAST IRON STEEL
Group
No
Chuck
Size
Groove Width
G
Screw Size
E
Hole Space
D
Hole
to Front
J
Pie
Dia
B
Height Inch
A
No.
of
Holes
Industry
Ref #
Part
Number
Part
Number
Part
Number
I1-43-62 5 0.433 (11mm) 5/16 0.625 (16mm) 0.875 6 2.00 3 - 6-RPH-5256A - 6-RPH-5256S
I1-43-71 5-6 0.433 (11mm) 5/16 0.718 (18mm) 1.150 6 2.00 3 - RPH-6200A RPH-6200CI RPH-6200S
6 3.00 3 - RPH-6300A - -
6 4.00 3 - RPH-6400A - RPH-6400S
I1-47-59 5-6 0.473 (12mm) 5/16 0.591 (15mm) 0.900 6 2.00 2 - 6-RPH-5200A - 6-RPH-5200S
I1-55-71 5-6 0.551 (14mm) 3/8 0.710 (18mm) 1.050 6 2.00 3 - RPH-6205A RPH-6205CI RPH-6205S
6 4.00 3 - RPH-6405A - RPH-6405S
I1-55-87 5-10 0.551 (14mm) 3/8 0.875 (22mm) 1.650 8 2.00 3 - 8-RPH-6201A 8-RPH-6201CI 8-RPH-6201S
8 4.00 3 - 8-RPH-6401A - 8-RPH-6401S
1.913 10 2.00 3 - RPH-10205A RPH-10205CI RPH-10205S
10 4.00 3 - RPH-10405A RPH-10405CI -
I1-55-98 5-6 0.551 (14mm) 3/8 0.984 (25mm) 1.420 6 2.00 2 - RSM-6200A RSM-6200CI RSM-6200S
6 4.00 2 - RSM-6400A - RSM-6400S
I1-66-87 8 0.669 (17mm) 1/2 0.875 (22mm) 1.650 8 2.00 3 - RPH-8200A RPH-8200CI RPH-8200S
8 4.00 3 - RPH-8400A - RPH-8400S
I1-66-100 8 0.669 (17mm) 1/2 1.000 (25.5mm) 2.250 8 2.00 2 - RPH-8201A RPH-8201CI RPH-8201S
8 4.00 2 - RPH-8401A - RPH-8401S
10 2.00 2 - 10-RPH-8201A - -
12 2.00 2 - 12-RPH-8201A - -
I1-66-112 8 0.669 (17mm) 1/2 1.125 (28.5mm) 1.125 8 2.00 3 SMW8P RSM-8200A RSM-8200CI RSM-8200S
4.00 3 SMW8P1 RSM-8400A - RSM-8400S

Round Jaw Material: ALUMINUM-6061-T6 Bar Stock, CAST IRON-Gray, STEEL-1018. 18" & Larger- Aluminum Casting T6
* denotes non-stock item. Please allow 1 week manufacturing time.



To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
Critical Dimensions ALUMINIUM CAST IRON STEEL
Group No Chuck Size Groove Width G Screw Size E Hole Space D Hole to Front J Middle Hole to Front Jm Pie Dia B Height Inch A No. of Holes Industry Ref # Part Number Part Number Part Number
I1-78-118 10 to 12 0.787 (20mm) 1/2 1.187 (30mm) 1.913 - 8 2.000 2 - 8-RPH-10200A - -
3.100 10 2.000 3 - RPH-10200A RPH-10200CI RPH-10200S
2.500 3 - RPH-10250A - -
4.000 3 - RPH-10400A RPH-10400CI -
18 2.500 3 - 18-RPH-10250A - -
2.900 4.087 12 2.000 3 - 12-RPH-10200A 12-RPH-10200CI -
12 2.500 3 - 12-RPH-10250A - -
12 4.000 3 - 12-RPH-10400A - -
12 5.000 3 - 12-RPH-10500A - -
15 2.500 3 - 15-RPH-10250A - -
I1-82-112 11 to 12 0.827 (21mm) 5/8 1.125 (28.5mm) 3.630 - 12 2.000 2 - RPH-11200A RPH-11200CI -
- 12 4.000 2 - RPH-11400A - -
I1-82-217 10 to 12 0.827 (21mm) 1/2 2.170 (55mm) 1.855 4.025 10 2.000 3 - 10-RPH-12200A 10-RPH-12200CI -
10 4.000 3 - 10-RPH-12400A - -
I1-82-117 10 to 12 0.827 (21mm) 1/2 1.187 (30mm) 2.875 - 12 2.500 2 - RSM-12250A - -
- 12 4.000 2 - RSM-12400A - -
2.900 4.087 12 2.000 3 - RPH-12200A RPH-12200CI -
12 2.500 3 - RPH-12250A - -
12 4.000 3 - RPH-12400A - -
I1-82-118m 10 0.827 (21mm) 16mm 1.181 (30mm) 1.819 3.000 10 2.000 3 SMW10P RSM-10200A - -
10 4.000 3 SMW10P1 RSM-10400A - -
12 2.000 3 SMW12-10P 12-RSM-10200A - -
15 3.000 3 SMW15-10P 15-RSM-10300A - -
18 3.000 3 SMW18-10P 18-RSM-10300A - -
12 0.827 (21mm) 16mm 1.181 (30mm) 2.819 4.000 12 2.000 3 SMW12P RSM-12201A - -
4.000 3 SMW12P1 RSM-12401A - -
I1-82-118 8 to 12 0.827 (21mm) 5/8 1.187 (30mm) 1.963 - 8 2.000 2 - RPH-8205A RPH-8205CI RPH-8205S
4.000 2 - RPH-8405A - RPH-8405S
2.875 - 12 2.000 2 - RAT-12200A RAT-12200CI -
2.500 2 - RAT-12250A - -
4.000 2 - RAT-12400A - -
I1-82-156 14 to 18 0.827 (21mm) 5/8 1.562 (39.5mm) 2.875 4.437 15 2.500 3 - RPH-15250A RPH-15250CI -
3.438 5.000 15 3.000 3 PH15P RPH-15300A4 - -
2.875 4.437 15 4.000 3 - RPH-15400A - -
3.438 5.000 15 4.000 3 PH15P1 RPH-15400A4 - -
2.875 4.437 18 2.500 3 - 18-RPH-15250A - -
3.438 5.000 18 3.000 3 PH18-15P 18-RPH-15300A4 - -
4.000 3 PH18-15P1 18-RPH-15400A4 - -
2.875 4.437 18 2.500 3 - RPH-18250A - -
4.000 3 - RPH-18400A - -
3.438 5.000 21 3.000 3 PH21-15P 21-RPH-15300A4 - -
2.875 4.437 24 2.500 3 - 24-RPH-18250A - -
3.438 5.000 24 3.000 3 PH24-15P 24-RPH-15300A4 - -
2.875 4.437 24 4.000 3 - 24-RPH-18400A - -
I1-100-137 14 to 15 1.003 (25.5mm) 3/4 1.375 (35mm) 3.500 4.875 15 2.000 3 - RPH-15210A - -
4.000 3 - RPH-15410A - -
I1-118-197 18 1.181 (30mm) 3/4 1.970 (50mm) 4.060 6.030 18 3.000 3 - RPH-18300A - -
4.000 3 - RPH-18400A - -

Round Jaw Material: ALUMINUM-6061-T6 Bar Stock, CAST IRON-Gray, STEEL-1018. 18" & Larger- Aluminum Casting T6
* denotes non-stock item. Please allow 1 week manufacturing time.
