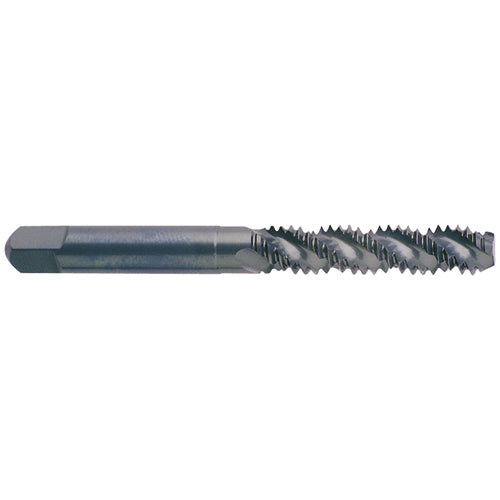

1/4-28 H3 3FL FAST SPFL BTTM TAP
Item #: YG42C3423
Brand: YG-1 Cutting Tools
Model #: C3423
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/4″ |
| Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Threads per Inch (TPI) | 28 |
| Flute Count (NOF) | 3 |
| Thread Standard | UNF |
| Flute Helix Angle (FHA) | 45 Degrees |
| Overall Length (OAL) | 2.5″ |
| Cutting Edge Material | HSSE-V3 |
| Thread Cutting Part Length (THL) | 1″ |
| Thread Tolerance Class (TCTR) | H3 |
| Usable Length (LU) | 1″ |
