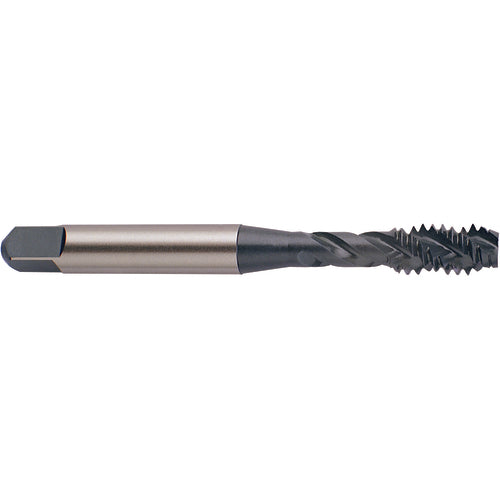

M7X1.0 D5 3FL SPFL MOD BTTM TAP
Item #: YG42BU345
Brand: YG-1 Cutting Tools
Model #: BU345
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M7 |
| Thread Tolerance Class (TCTR) | D5 |
| Thread Pitch (TP) | 1 mm |
| Tool Type | Spiral Flute Tap |
| Thread Standard | M |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 2.72″ |
| Coating | Oxide |
| Thread Cutting Part Length (THL) | 0.433″ |
| End Shape | Modified Bottoming |
| Usable Length (LU) | 1.126″ |
| Length Group | 2.5D |
| Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Square Size | 0.238″ |
| Flute Count (NOF) | 3 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 45 Degrees |
| Tapping Prehole Diameter (Pre-hole) | 0.239″ |
| Cutting Edge Material | HSSE-V3 |
