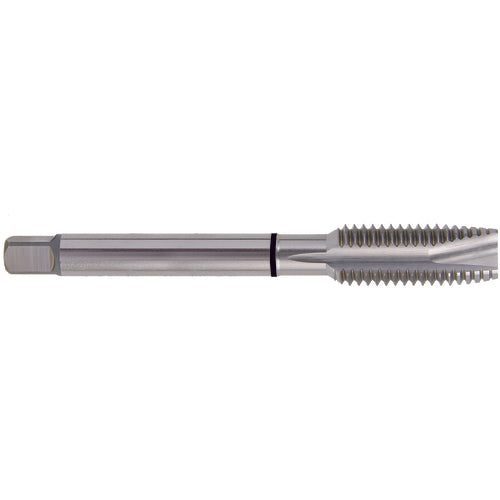

10-24 H3 3FL SP PT COMBO TAP
Item #: YG41T4323
Brand: YG-1 Cutting Tools
Model #: T4323
| Product Specifications | |
|---|---|
| Thread Standard | UNF |
| Special Feature | Black Ring |
| Thread Size | #10 - 32 |
| Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Thread Diameter Size (TDZ) | #10 |
| Thread Cutting Part Length (THL) | 0.531″ |
| Threads per Inch (TPI) | 32 |
| Flute Helix Angle (FHA) | 0 Degrees |
| Thread Tolerance Class (TCTR) | H3 |
| Drive Size (DRVS) | 0.152″ |
| Usable Length (LU) | 0.906″ |
| Tapping Prehole Diameter (Pre-hole) | 0.161″ |
| Overall Length (OAL) | 2.38″ |
| End Shape | Plug |
| Chamfer | 4P-5P |
| Shank Type | Square |
| Coating | Bright |
| Length Group | 3xD |
| Flute Count (NOF) | 3 |
| Measurement Type | Inch |
| Cutting Edge Material | HSS-EX |
| Series/List # | T4 |
| Tool Type | Spiral Point Tap |
