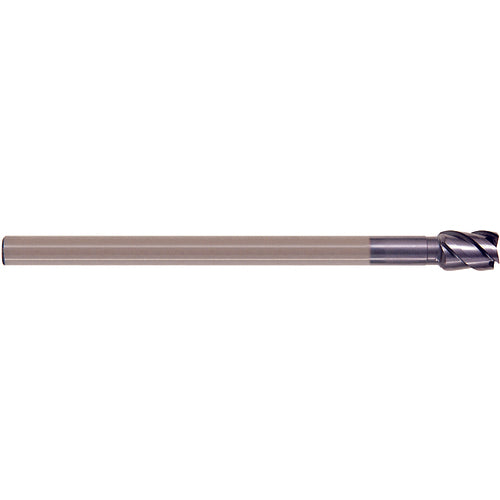

5/8(R.04″) × 1/2 × 7/8(1″) × 6-1/2 X-Power 4Fl 45 Degree Long Cr End Mill
Item #: YG33GM103903
Brand: YG-1 Cutting Tools
Model #: GM103903
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| Shank Type | Plain |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 7/8″ |
| Applicable Material | Steel |
| Overall Length (OAL) | 6-1/2″ |
| Decimal Equivalent | 0.625″ |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | Y-Coating |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.04″ |
| Flute Count (NOF) | 4 |
| Trade Name | X Power Pro |
| Flute Helix Angle (FHA) | 45 Degrees |
