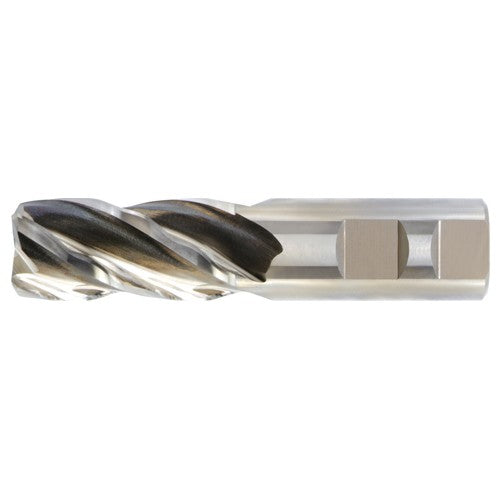

620V 1X2 CO 4F CC EM
Item #: WK402709872
Brand: Widia
Model #: 2709872
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1″ |
| Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| End Shape | Chamfer |
| Depth of Cut Maximum (APMX) | 2″ |
| Usable Length (LU) | 2″ |
| Overall Length (OAL) | 4-1/2″ |
| Corner Chamfer Width (CHW) | 0.039″ |
| Cutting Edge Material | HSSCo |
| Flute Type | WavCut II |
| Coating | Uncoated |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Style | 82-02 SEM Side and Center |
| Flute Helix Angle (FHA) | CW|35 Degrees |
| Decimal Equivalent | 1″ |
