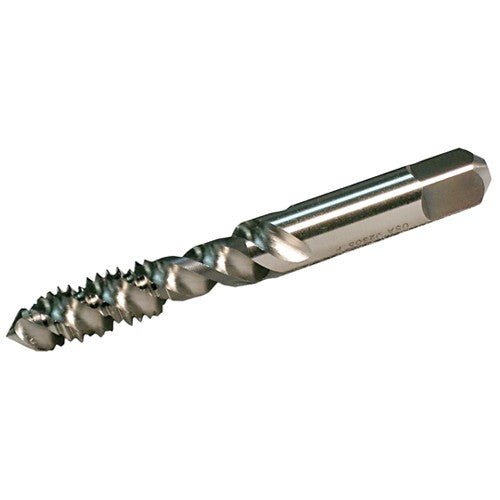

16062 M5-0.8 HS G D4 3F BOTT FAST
Item #: WK302748293
Brand: Widia
Model #: 2748293
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M5 |
| Thread Tolerance Class (TCTR) | D4 |
| Thread Pitch (TP) | 0.8 mm |
| Chamfer | 1P-2P |
| Thread Standard | Metric |
| Coating | Uncoated |
| Overall Length (OAL) | 2.38″ |
| Style | Bottoming |
| Thread Cutting Part Length (THL) | 1/2″ |
| Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Measurement Type | Metric |
| Flute Count (NOF) | 3 |
