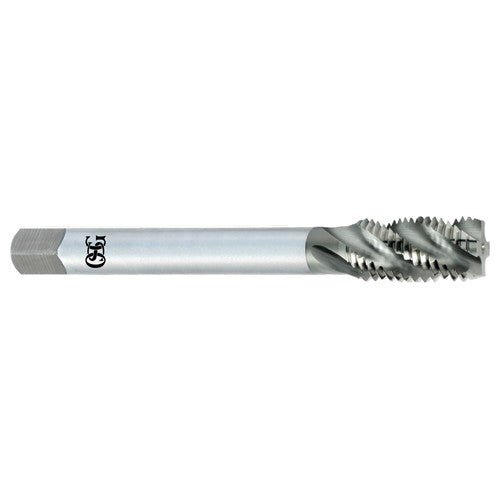

M8x1.25 3Fl 2 High Speed Steel Spiral Flute Tap-Bright
Item #: TP1511601
Brand: OSG USA, Inc.
Model #: 11601
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M8 |
| Thread Tolerance Class (TCTR) | 2 |
| Thread Pitch (TP) | 1.25 mm |
| Tool Type | Spiral Flute Tap |
| Thread Standard | Metric |
| Chamfer | 2.5P-3P |
| Overall Length (OAL) | 70 mm |
| Coating | Bright |
| Thread Cutting Part Length (THL) | 30 mm |
| Flute Type | Spiral |
| Usable Length (LU) | 37 mm |
| End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 6.2 mm |
| Style | Semi-Bottoming |
| Flute Count (NOF) | 3 |
| Measurement Type | Metric |
| Cutting Edge Material | HSS |
