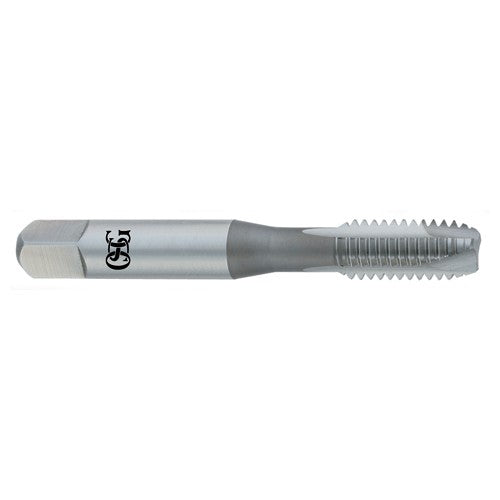

M2.5x0.45 2Fl D3 HSS Spiral Point Plug Tap-Steam Oxide
Item #: TP121982101
Brand: OSG USA, Inc.
Model #: 1982101
| Product Specifications | |
|---|---|
| Thread Standard | Metric |
| Cutting Edge Material | HSS |
| Thread Size | M2.5 × 0.45 |
| Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | M2.5 |
| Applicable Material | Steel | Aluminum / Non-Ferrous Materials |
| Thread Pitch (TP) | 0.45 mm |
| Connection Diameter Machine Side (DCONMS) | 3.58 mm |
| Thread Tolerance Class (TCTR) | D3 |
| Thread Cutting Part Length (THL) | 1/2″ |
| Usable Length (LU) | 12 mm |
| End Shape | Chamfer |
| Overall Length (OAL) | 1-13/16″ |
| Style | Plug |
| Chamfer | 4P-4.5P |
| Cutting Direction (HAND) | Right Hand |
| Coating | Black Oxide |
| Measurement Type | Metric |
| Flute Count (NOF) | 2 |
| Series/List # | 142 |
