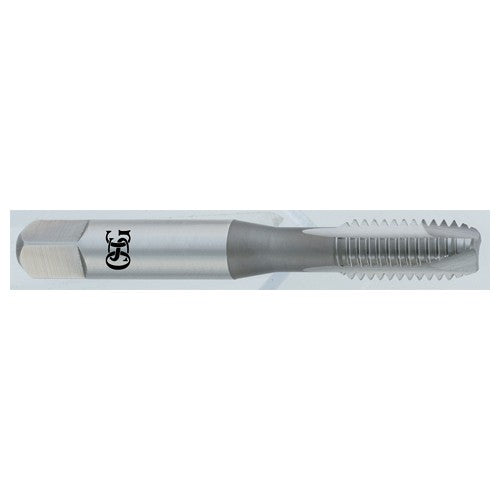

2-56 2Fl H3 HSS Spiral Pointed Tap-TiCN
Item #: TP111210608
Brand: OSG USA, Inc.
Model #: 1210608
| Product Specifications | |
|---|---|
| Thread Standard | NC |
| Cutting Edge Material | HSS |
| Thread Size | #2 - 56 |
| Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | #2 |
| Applicable Material | Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Threads per Inch (TPI) | 56 |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Thread Tolerance Class (TCTR) | H3 |
| Thread Cutting Part Length (THL) | 7/16″ |
| Usable Length (LU) | 0.512″ |
| End Shape | Spiral Point | Chamfer |
| Overall Length (OAL) | 1-3/4″ |
| Style | Plug |
| Chamfer | 4P-4.5P |
| Cutting Direction (HAND) | Right Hand |
| Coating | TiCN |
| Measurement Type | Wire Gauge |
| Flute Count (NOF) | 2 |
| Series/List # | 105 |
