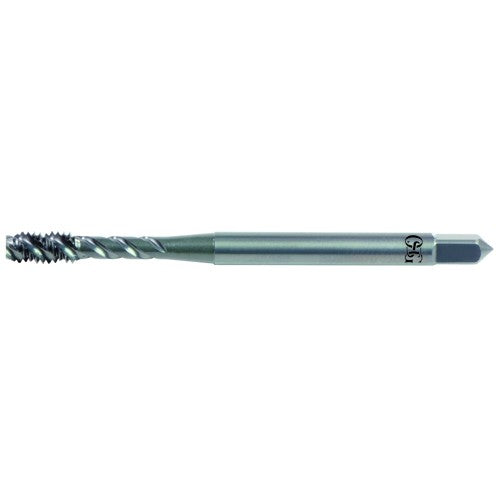

1/4-28 H3 3FL BOTT S/O SP FL TAP
Item #: TP101302001901
Brand: OSG USA, Inc.
Model #: 1302001901
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/4″ |
| Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 28 |
| Tool Type | Spiral Flute Tap |
| Thread Standard | NF |
| Chamfer | 1.5P-2P |
| Overall Length (OAL) | 2-1/2″ |
| Coating | Black Oxide |
| Thread Cutting Part Length (THL) | 1″ |
| Flute Type | Spiral |
| Usable Length (LU) | 0.996″ |
| End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Style | Bottoming |
| Flute Count (NOF) | 3 |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | HSS |
| Measurement Type | Inch |
