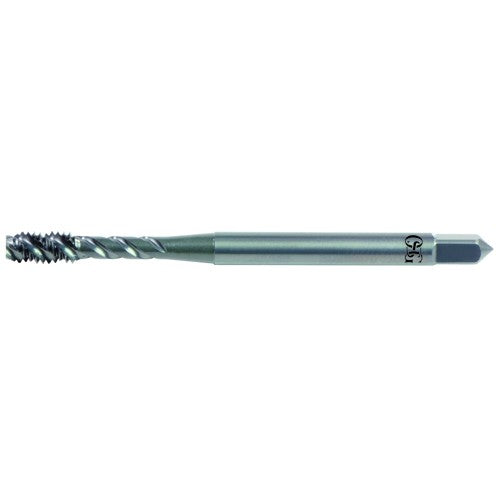

10-24 H3 3FL PLUG S/O SP FL TAP
Item #: TP101302000301
Brand: OSG USA, Inc.
Model #: 1302000301
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #10 |
| Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 24 |
| Tool Type | Hand Tap |
| Thread Standard | NC |
| Chamfer | 3.5P-4.5P |
| Overall Length (OAL) | 2-3/8″ |
| Coating | Black Oxide |
| Thread Cutting Part Length (THL) | 7/8″ |
| Flute Type | Spiral |
| Usable Length (LU) | 0.866″ |
| End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Style | Plug |
| Flute Count (NOF) | 3 |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | HSS |
| Measurement Type | Wire Gage |
