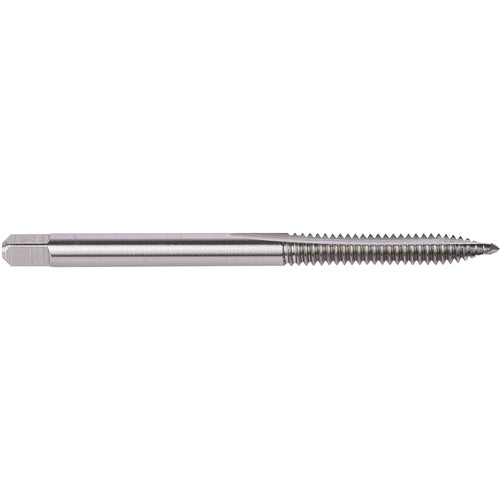

No.3 56 2 Flute Plug Union Butterfield HSS Bright UNF Non-Relieved Style Spiral Point ANSI E-code # 1534NR3-56H2NO2
Item #: TD251010800
Brand: Union Butterfield
Model #: 6007495
| Product Specifications | |
|---|---|
| Thread Standard | NF |
| Applicable Material | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Thread Size | #3 - 56 |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Thread Diameter Size (TDZ) | #3 |
| End Shape | Spiral Point |
| Threads per Inch (TPI) | 56 |
| Style | Plug |
| Thread Tolerance Class (TCTR) | 2B|3B|H2 |
| Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 1-13/16″ |
| Coolant Supply Property (CSP) | External |
| Coating | Bright |
| Length Group | 2.5xD |
| Flute Count (NOF) | 2 |
| Square Size | 0.11″ |
| Cutting Edge Material | HSS |
| Measurement Type | Wire Gauge |
| Standard | ANSI |
