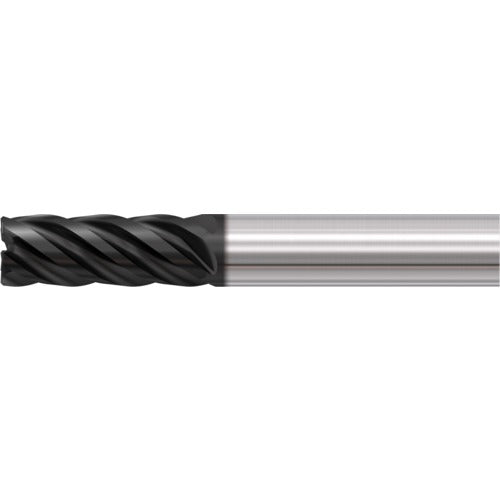

ME-1/2-1 1/4-W-MIVM5031
Item #: MC379593913
Brand: Morse Cutting Tools
Model #: 9593913
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Application | Roughing | Finishing |
| Depth of Cut Maximum (APMX) | 1-1/4″ |
| Corner Radius (RE) | 0.03″ |
| Overall Length (OAL) | 3-1/2″ |
| Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide |
| Length Group | Medium |
| Coating | AlTiN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 5 |
| Decimal Equivalent | 0.5″ |
| Flute Helix Angle (FHA) | Variable |
| Measurement Type | Inch |
| Shank Type | Weldon Flat |
| Series/List # | MIVM5021 |
| End Shape | Corner Radius |
| Single / Double End | Single End |
