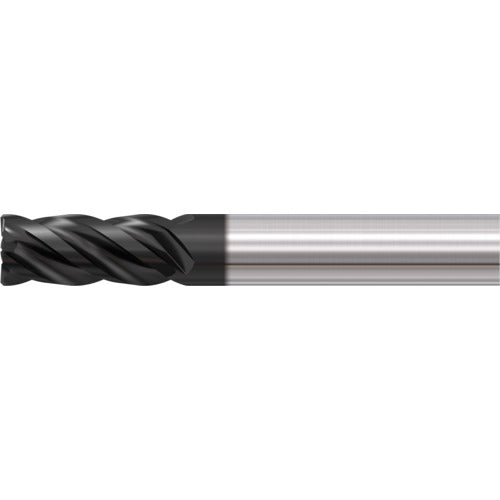

ME-3/4-1 1/2-C-MIVL4031
Item #: MC369593916
Brand: Morse Cutting Tools
Model #: 9593916
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Application | Roughing | Finishing |
| Depth of Cut Maximum (APMX) | 1-1/2″ |
| Corner Radius (RE) | 0.03″ |
| Overall Length (OAL) | 5″ |
| Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide |
| Length Group | Long |
| Coating | AlTiN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Decimal Equivalent | 0.75″ |
| Flute Helix Angle (FHA) | Variable |
| Measurement Type | Inch |
| Shank Type | Cylindrical |
| Series/List # | MIVL4041 |
| End Shape | Corner Radius |
| Single / Double End | Single End |
| Usable Length (LU) | 2-1/4″ |
