MNS1080X10DB CARB DRILL
Item #: MB03465051
Brand: Mitsubishi Materials USA
Model #: 465051

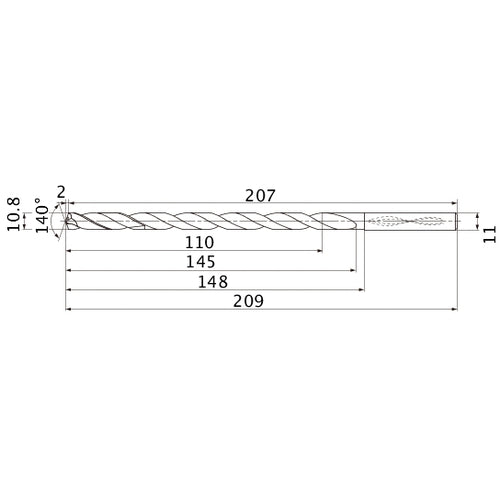

| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 10.8 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 10.8 mm |
| Cutting Edge Material | Carbide |
| Length Group | 10xD |
| Grade | TF15 |
| Applicable Material | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 11 mm |
| Series/List # | MNS |
| Head Length (LH) | 148 mm |
| Usable Length (LU) | 110 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 145 mm |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 209 mm |
| Point Length (PL) | 2 mm |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 207 mm |
