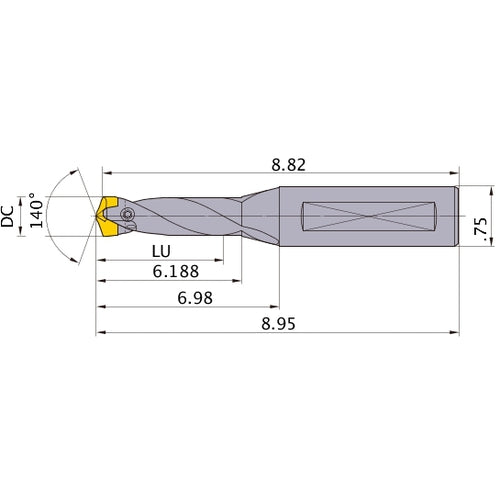

STAWLN0046 INDEXABLE DRILL
Item #: MB0310531013
Brand: Mitsubishi Materials USA
Model #: 10531013
| Product Specifications | |
|---|---|
| Usable Length (LU) | 6.191″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Group | 8D |
| Cutting Item Count (CICT) | 1 |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Measurement Type | Inch |
| Protruding Length (LPR) | 6.978″ |
| Series/List # | STAW_INCH |
| Functional Length (LF) | 8.82″ |
| Angle | 140 Degrees |
| Overall Length (OAL) | 8.947″ |
