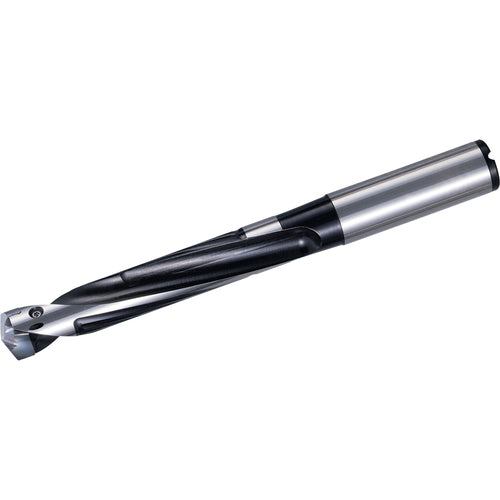

SS0625DRA135M5, DRA Magic Drill 0.5315-0.5508″ Cutting Diameter, 5xD, Replaceable Tip Drill
Item #: KY96THD11392
Brand: Kyocera Precision Tools
Model #: THD11392
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.5315″ - 0.5508″ |
| Overall Length (OAL) | 5.4331″ |
| Usable Length (LU) | 2.7559″ |
| Shank Length (LS) | 1.8902″ |
| Length Group | 5D |
| Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round |
| Cutting Direction (HAND) | Right Hand |
| Application | Drilling |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.6252″ |
| Style | SS DRA |
| Insert Seat Size Code (SSC) | 135 |
| Master Insert Identification (MIID) | DA1350M- ~ DA1390M- |
| Cutting Diameter Minimum (DCN) | 0.5315″ |
| Series/List # | DRA |
| Cutting Diameter Maximum (DCX) | 0.5508″ |
| Body Material | Steel |
