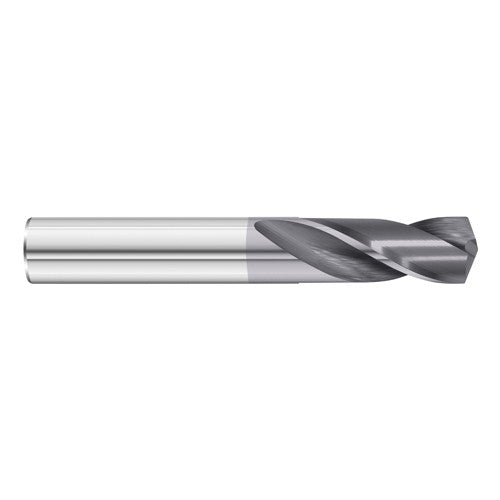

2.5 mm Dia. × 20.5 mm Shank × 16 mm Flute Length × 51 mm OAL, 5xD, 135°, TiAlN, 2xD Flute, External Coolant, Round Solid Carbide Drill
Item #: FT8213228
Brand: Fullerton Tool
Model #: 13228
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 2.5 mm |
| Shank Type | Round |
| Decimal Equivalent | 0.0984″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 2.5 mm |
| Tool Type | Drill |
| Length Group | 5xD |
| Point Shape | Notch |
| Coating | TiAlN |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20.5 mm |
| Series/List # | 1500 |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 16 mm |
| Point Angle (SIG) | 135 Degrees |
| Overall Length (OAL) | 51 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Flute Count (NOF) | 2 |
