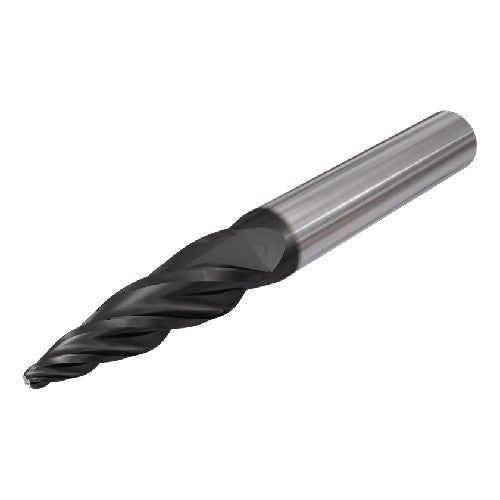

EOBI-R.08R3.12A1.1/10-4C5 IC902
Item #: EH563379596
Brand: Iscar
Model #: 3379596
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.141″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Application | Finishing | Semi Finish | Profiling |
| Depth of Cut Maximum (APMX) | 1.1″ |
| Corner Radius (RE) | 0.08″ |
| Overall Length (OAL) | 3″ |
| Grade | IC902 |
| Cutting Edge Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Coating | TiAlN |
| Minimum Feed per Tooth (fz(min)) | 0.0012 ″/tooth |
| Flute Count (NOF) | 4 |
| Body Material | Carbide |
| Shank Type | Round |
| Decimal Equivalent | 0.141″ |
| End Shape | Corner Radius |
| Measurement Type | Inch |
