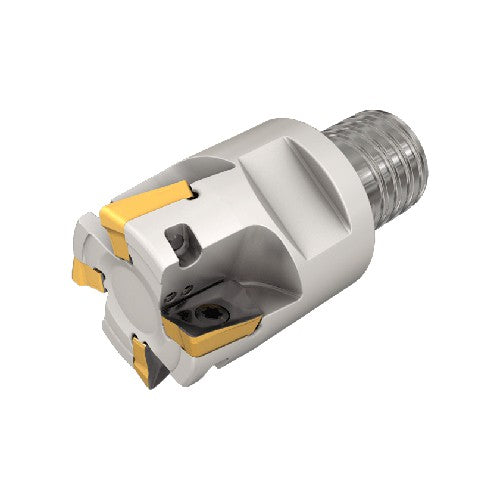

HM90 E90A D20-3-MMT12-JHP
Item #: EH233366865
Brand: Iscar
Model #: 3366865
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 0.787″ |
| Functional Length (LF) | 1.004″ |
| Cutting Diameter (DC) | 0.787″ |
| Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 3 |
| Connection Thread Nominal Size Machine Side (THSZMS) | T12 |
| Depth of Cut Maximum (APMX) | 0.3937″ |
| Drive Size (DRVS) | 0.63″ |
| Overall Length (OAL) | 1.516″ |
| Flute Count (NOF) | 3 |
| Ramping Angle Maximum (RMPX) | 7.5 Degrees |
| Coolant Supply Property (CSP) | Through Hole |
| Application | | Counter Boring | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.776″ |
| Cutting Direction (HAND) | Right Hand |
| Master Insert Identification (MIID) | APKT 1003PDR-HM |
| Measurement Type | Inch |
| Weight of Item (WT) | 0.32 Lbs |
| Body Material | Steel |
