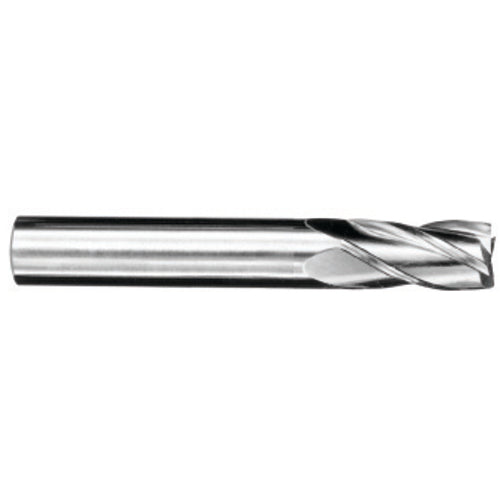

27/64 End Mill 4FL SQ TC - SER 01S 27/64x7/16x1x2-3/4
Item #: DD9039053
Brand: KYOCERA SGS Precision Tools
Model #: 39053
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 27/64″ |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 7/16″ |
| End Shape | Square |
| Depth of Cut Maximum (APMX) | 1″ |
| Usable Length (LU) | 1-3/4″ |
| Overall Length (OAL) | 2-3/4″ |
| Corner Radius (RE) | None |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | TC |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 |
| Decimal Equivalent | 0.421875″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Measurement Type | Inch |
