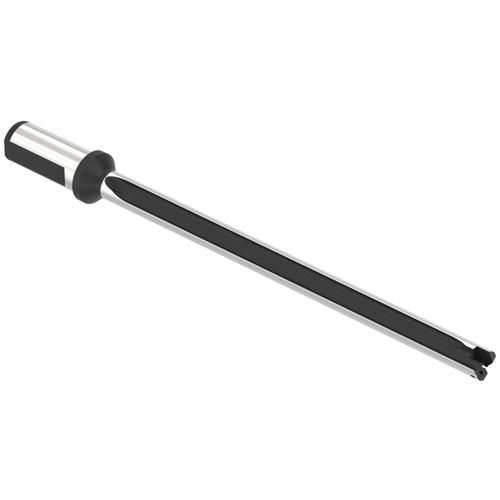

HTA1A12-25FM HOLDER
Item #: BA56HTA1A1225FM
Brand: Allied Machine and Eng.
Model #: HTA1A12-25FM
| Product Specifications | |
|---|---|
| Usable Length (LU) | 251.46 mm |
| Protruding Length (LPR) | 289.51 mm |
| Length Group | 12D |
| Functional Length (LF) | 293.07 mm |
| Shank Type | Flange |
| Overall Length (OAL) | 345.52 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| Shank Length (LS) | 56.01 mm |
| Cutting Diameter Minimum (DCN) | 17.6784 mm |
| Flute Type | Straight |
| Cutting Diameter Maximum (DCX) | 24.4 mm |
| Series/List # | 1 |
