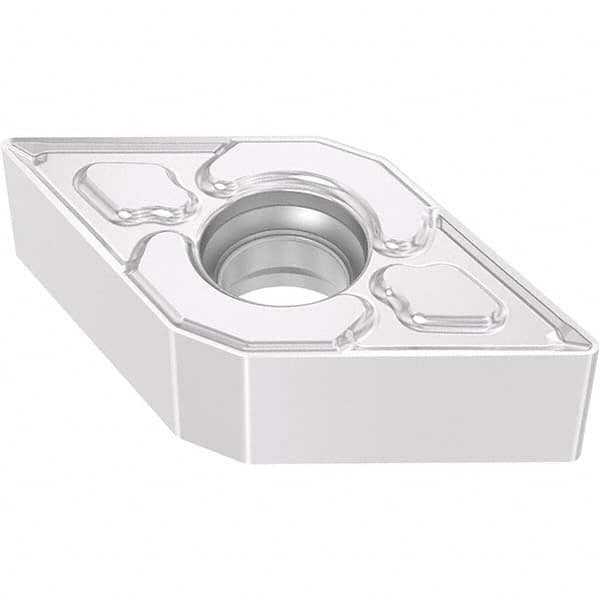

DNMU331-MF4 TM2501 Carbide Turning Insert TiCN/Al2O3 Finish, Neutral, 0.3799″ Long, 3/8″ Inscribed Circle, 1/64″ Corner Radius, 55° Diamond
Item #: 99919235
Brand: Seco
Model #: 03276321
Product Specifications
| Insert Style | DNMU |
| Insert Shape Code | D |
| Insert Size Code | 11 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TM2501 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Pin; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 1/64 |
| Included Angle | 55.0 |
| Relief Angle | 0 |
| Series | DNMU |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Negative |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Iso Code | DNMU110404 |
| Standards | ISO |
| Manufacturers Catalog Number | DNMU331-MF4 |
| Cutting Direction | Neutral |
| Lead Angle | 93 |
| Chip Breaker | MF4 |
| Rake Angle | 30 |
| Cutting Edge Style | Honed |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Coating/Finish | TiCN; Al2O3 |
| Multi-Use Application | Turning |
 | |
| MSC Part # | 99919235 |
| Mfr Part # | 03276321 |
| Country of OriginCountry of Origin is subject to change | VARIOUS |
