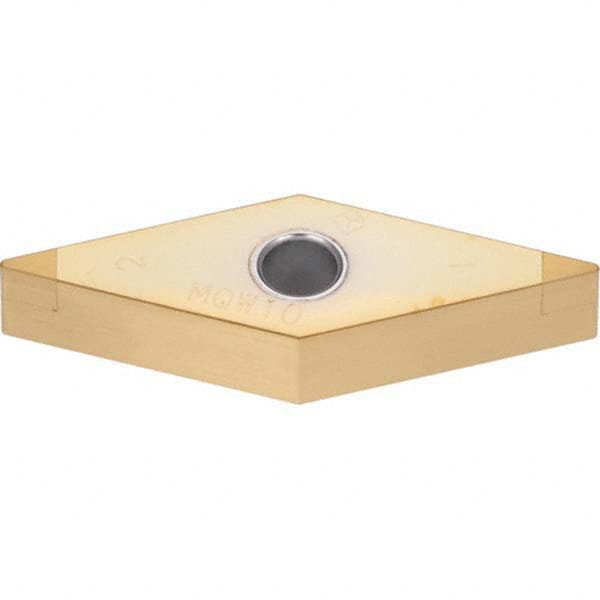

Tungaloy - 2QP-VNGA332 Grade BXM20 CBN Turning Insert
Item #: 12177820
Brand: Tungaloy
Model #: 6804786
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steel, cast iron and aluminum alloys.
Cubic Boron Nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | 2QP-VNGA |
| Insert Size | 332 |
| Material | CBN |
| Length (Decimal Inch) | 0.6570 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | BXM20 |
| Coating | TiCN |
| Material Grade | H10 |
| Insert Length (Decimal Inch) | 0.6570 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 2QP-VNGA160408-L |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Material | CBN |
| Cutting Direction | Neutral |
| Coating Process | PVD |
| Coating | TiCN |
| Material Grade | H10 |
| Material | CBN |
| Manufacturer's Grade | BXM20 |
| Insert Style | 2QP-VNGA |
| Insert Size | 332 |
| Shape | Diamond |
| Corner Radius (Decimal Inch) | 0.0313 |
| Coating Process | PVD |
| Coating | TiCN |
| Material Grade | H10 |
| Material | CBN |
| Manufacturer's Grade | BXM20 |
| Insert Style | 2QP-VNGA |
| Length (Decimal Inch) | 0.6570 |
| Insert Size | 332 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Shape | Diamond |
