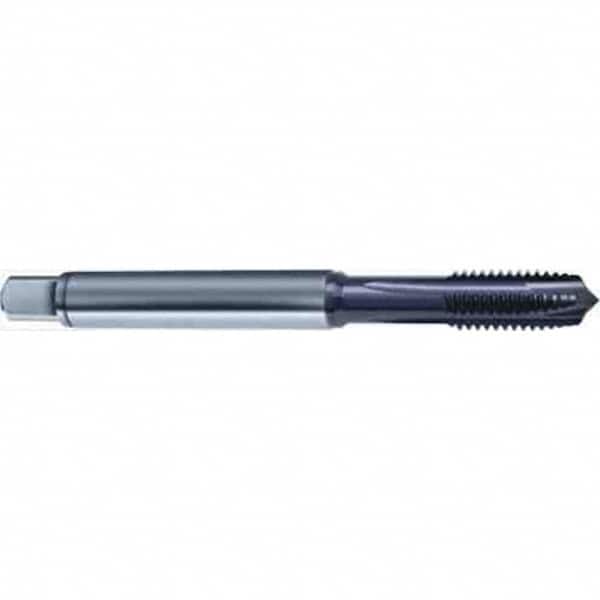

Guhring - M16x2.00 Metric 6HX 4 Flute TiAlN Finish High Speed Steel Straight Flute Standard Hand Tap - Plug, Right Hand Thread, 110mm OAL, D7/D8 Limit
Item #: 98855984
Brand: Guhring
Model #: 9029160160000
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and designed for efficiently threading through and blind holes. They have 3 to 5 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (mm) | M16x2.00 |
| Class of Fit | 6HX |
| Thread Limit | D7/D8 |
| Number of Flutes | 4 |
| Chamfer | Plug |
| Material | High Speed Steel |
| Finish/Coating | TiAlN |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric |
| Overall Length (mm) | 110.00 |
| Series/List | 2916 |
| Shank Diameter (mm) | 12.00 |
| Square Size (mm) | 9.00 |
| Material Application | Stainless Steel; Titanium Alloys |
