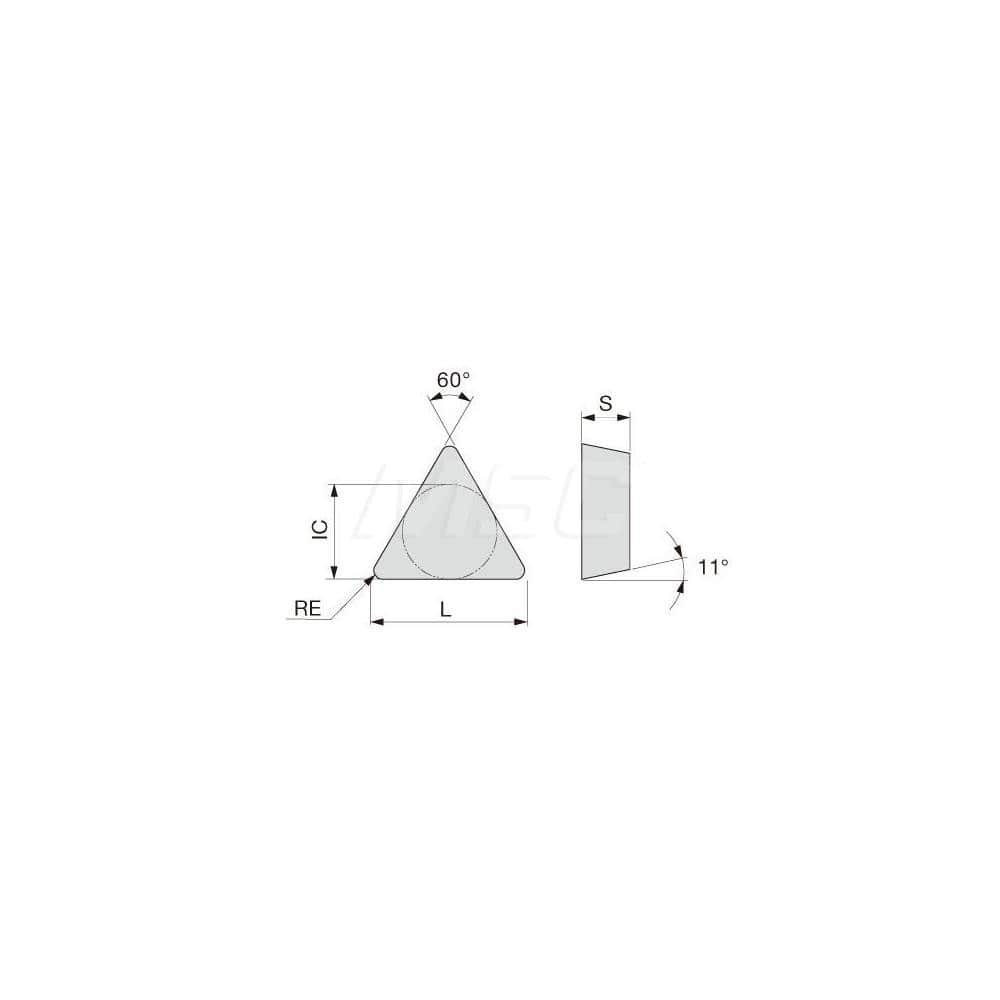

Turning Insert: TPMR321-24 T9225, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 3/8″ Inscribed Circle, 0.0160″ Corner Radius, 60.0 ° N/A Triangle, Series TPMR
Item #: 96920285
Brand: Tungaloy
Model #: 6781199
Product Specifications
| Insert Style | TPMR |
| Insert Size Code | 321 |
| Insert Shape | Triangle |
| Insert Material | Solid Carbide |
| Manufacturer Grade | T9225 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Series | TPMR |
| Coating Process | CVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Ansi Code | TPMR32124T9225 |
| Iso Code | TPMR160304-24 T9225 |
| Chip Breaker | 24 |
| Coating/Finish | TiCN; TiN; Al2O3 |
