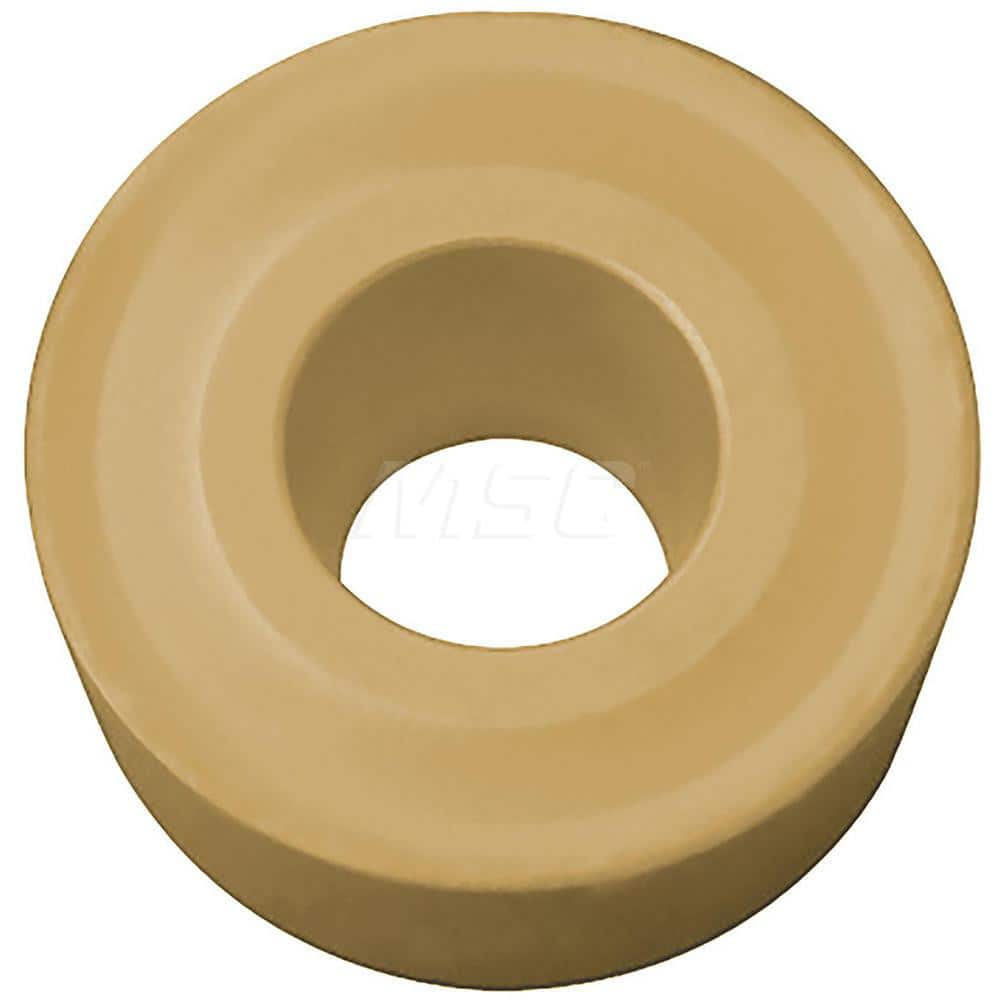

Kyocera RCMX 1003M0 CA5525 Grade CVD Carbide, 7 Degree, Round, Positive Rake Angle, Turning Insert for Light Interruption and Medium in (P) Carbon/Alloy Steel
Item #: 95808812
Brand: Kyocera
Model #: TJR04400
Product Specifications
| Insert Style | RCMX |
| Insert Shape Code | R |
| Insert Size Code | 1003 |
| Insert Shape | Round |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CA5525 |
| Hole Diameter (Decimal Inch) | 0.1417 |
| Inscribed Circle (mm) | 10.00 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Relief Angle | 7 |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3937 |
| Primary Workpiece Material | P |
| Iso Code | RCMX1003M0 |
| Manufacturers Catalog Number | RCMX1003M0CA5525 |
| Chip Breaker | X |
| Style | RCMX |
| Width (Decimal Inch - 4 Decimals) | 0.3937 |
| Full Radius | Yes |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Multi-Use Application | External Turning; Facing; Undercutting |
