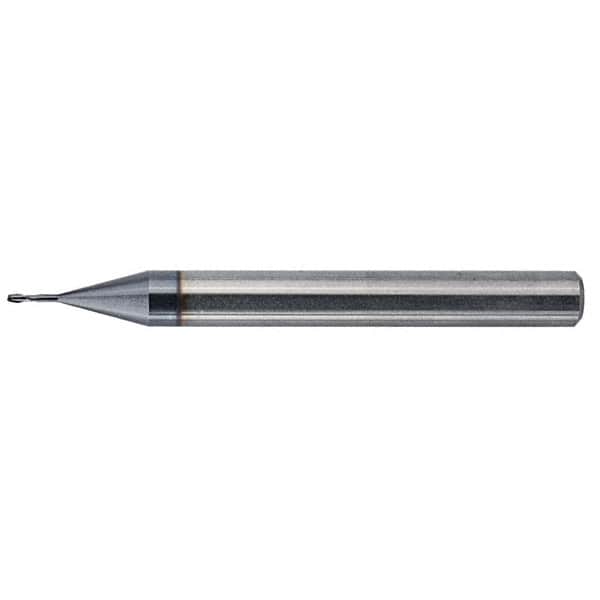

Square End Mill: 1.5mm LOC, 6mm Shank Dia, 50mm OAL, 2 Flutes, Solid Carbide Single End, AlTiN Finish, Spiral Flute, 30 ° Helix, Centercutting, RH Cut, RH Flute, Series F2AH
Item #: 95668448
Brand: Kennametal
Model #: 6433266
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0394 |
| Mill Diameter (mm) | 1.00 |
| Number Of Flutes | 2 |
| Length of Cut (mm) | 1.50 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Finish/Coating | AlTiN |
| Shank Diameter (mm) | 6.00 |
| Helix Angle | 30 |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | Yes |
| Overall Length (mm) | 50.00 |
| Length of Cut (Decimal Inch) | 0.0591 |
| Material Grade | KCPM15 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Helix Style | Medium |
| Reach Length (mm) | 2.50 |
| Series | F2AH |
