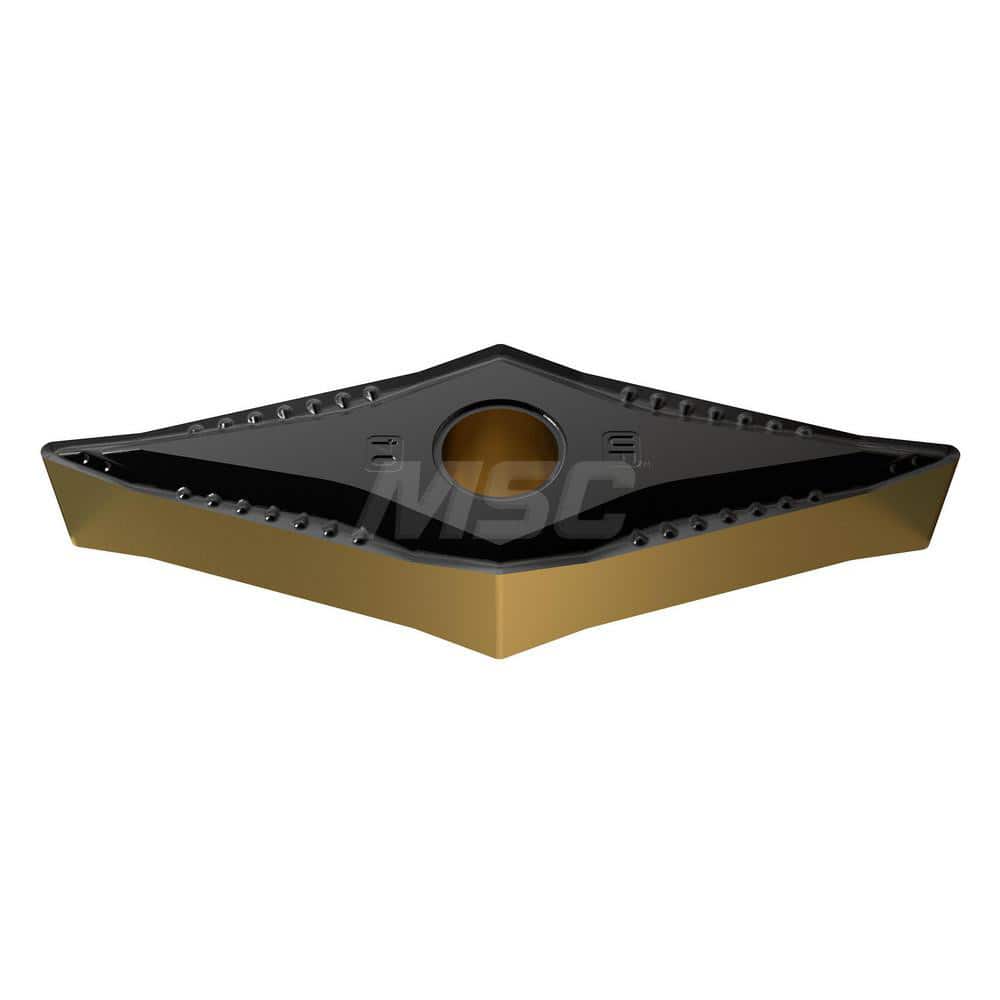

Turning Insert: VNMG160404-UF YG3030, Solid Carbide TiCN & Al2O3 Finish, 0.6220″ Long, 3/8″ Inscribed Circle, N/A Series VNMG
Item #: 94784550
Brand: YG-1
Model #: 22000308
Product Specifications
| Insert Style | VNMG |
| Insert Shape Code | V |
| Insert Size Code | 160404 |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | YG3030 |
| Inscribed Circle (Inch) | 3/8 |
| Width (Inch) | 3/8 |
| Insert Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 1/64 |
| Series | VNMG |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Insert Length (Decimal Inch) | 0.6220 |
| Chip Breaker | G |
| Coating/Finish | TiCN; Al2O3 |
