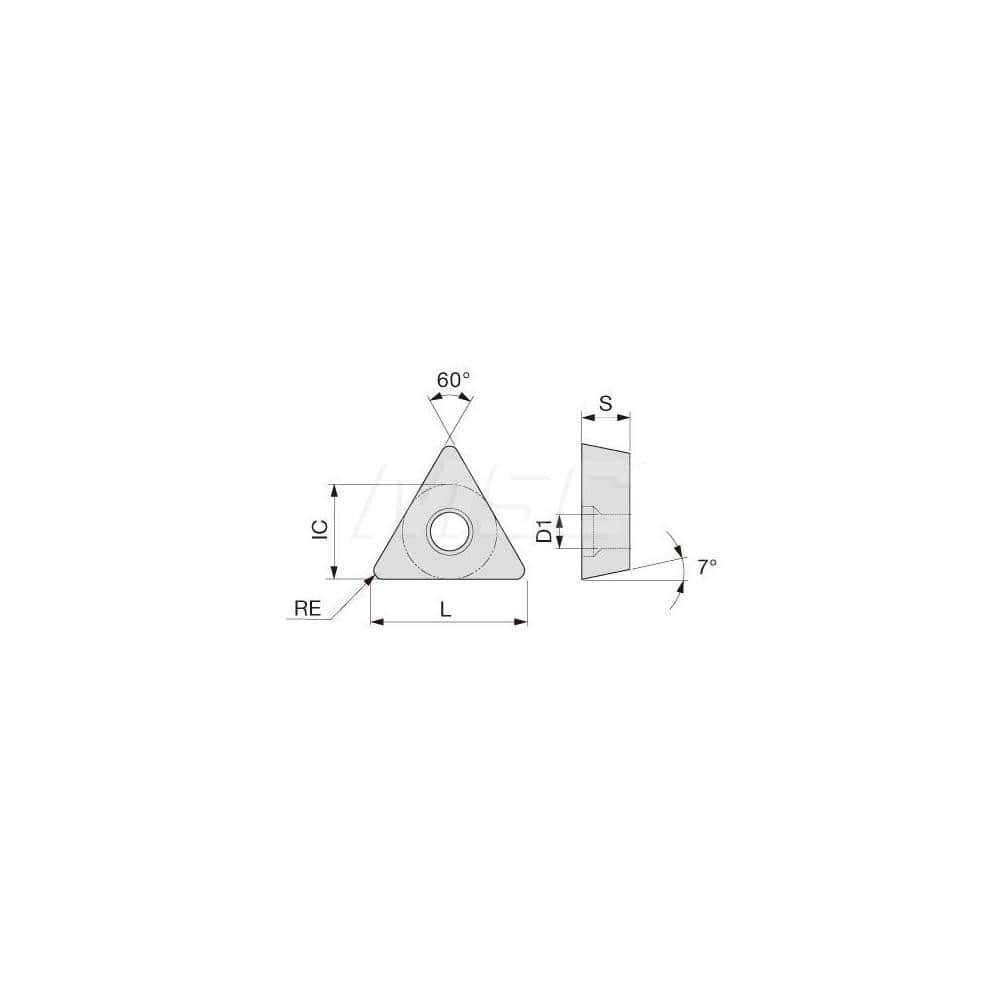

Turning Insert: TCMT32.51PS T6120, Solid Carbide TiCN & TiN Finish, Neutral, 3/8″ Inscribed Circle, 0.0160″ Corner Radius, 60.0 ° N/A Triangle, Series TCMT
Item #: 94692738
Brand: Tungaloy
Model #: 6994672
Product Specifications
| Insert Style | TCMT |
| Insert Size Code | 32.51 |
| Insert Shape | Triangle |
| Insert Material | Solid Carbide |
| Manufacturer Grade | T6120 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 60.0 |
| Relief Angle | 7 |
| Series | TCMT |
| Coating Process | CVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Ansi Code | TCMT32.51PST6120 |
| Iso Code | TCMT16T304-PS T6120 |
| Chip Breaker | PS |
| Coating/Finish | TiCN; TiN |
