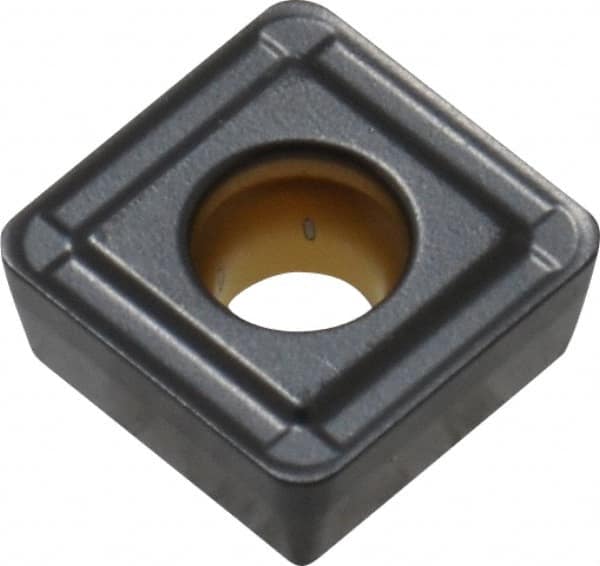

Kennametal - SPGX070308 HP Grade KCU25 Carbide Indexable Drill Insert - TiCN/Al2O3 Finish, 0.307" Inscribed Circle
Item #: 93629640
Brand: Kennametal
Model #: 4040135
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPGX |
| Insert Size | 070308 |
| Material | Carbide |
| Material Grade | C2/C6 |
| Manufacturer's Grade | KCU25 |
| Inscribed Circle (Decimal Inch) | 0.3070 |
| Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Hole Diameter (Decimal Inch) | 0.1120 |
| Coating | TiCN/Al2O3 |
| Coating Process | CVD |
| Chipbreaker | HP |
