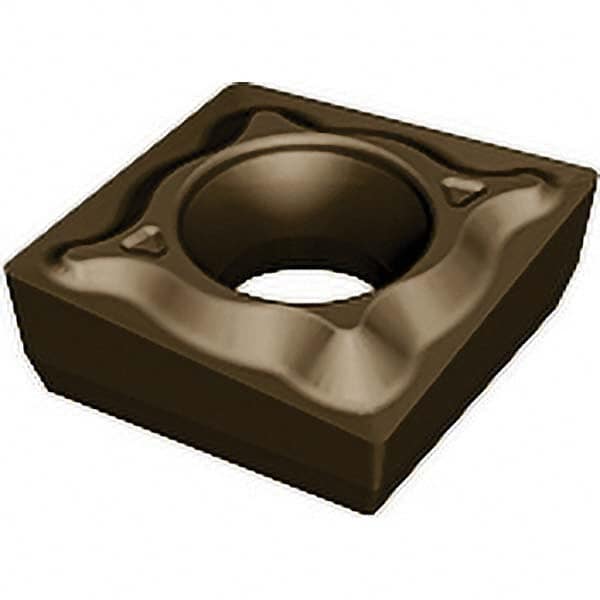

Indexable Drill Insert: XCNT06EN CTCP435, Carbide 88 ° Square
Item #: 91545038
Brand: Allied Machine and Engineering
Model #: 11821912
Product Specifications
| Insert Style | XCNT |
| Insert Size Code | 06 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTCP435 |
| Inscribed Circle (Decimal Inch) | 0.2560 |
| Cutting Direction | Neutral |
| Corner Radius (Decimal Inch) | 0.0080 |
| Chipbreaker | EN |
| Series | EC 12 |
| Shape | Square |
| Hole Diameter (Decimal Inch) | 0.0980 |
| Relief Angle | 7 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Standards | ISO 9001:2015 |
| Insert Size | 060202 |
| Width (Decimal Inch - 4 Decimals) | 0.2360 |
| Included Angle Degree | 88 |
| Thickness (Decimal Inch - 4 Decimals) | 0.0940 |
