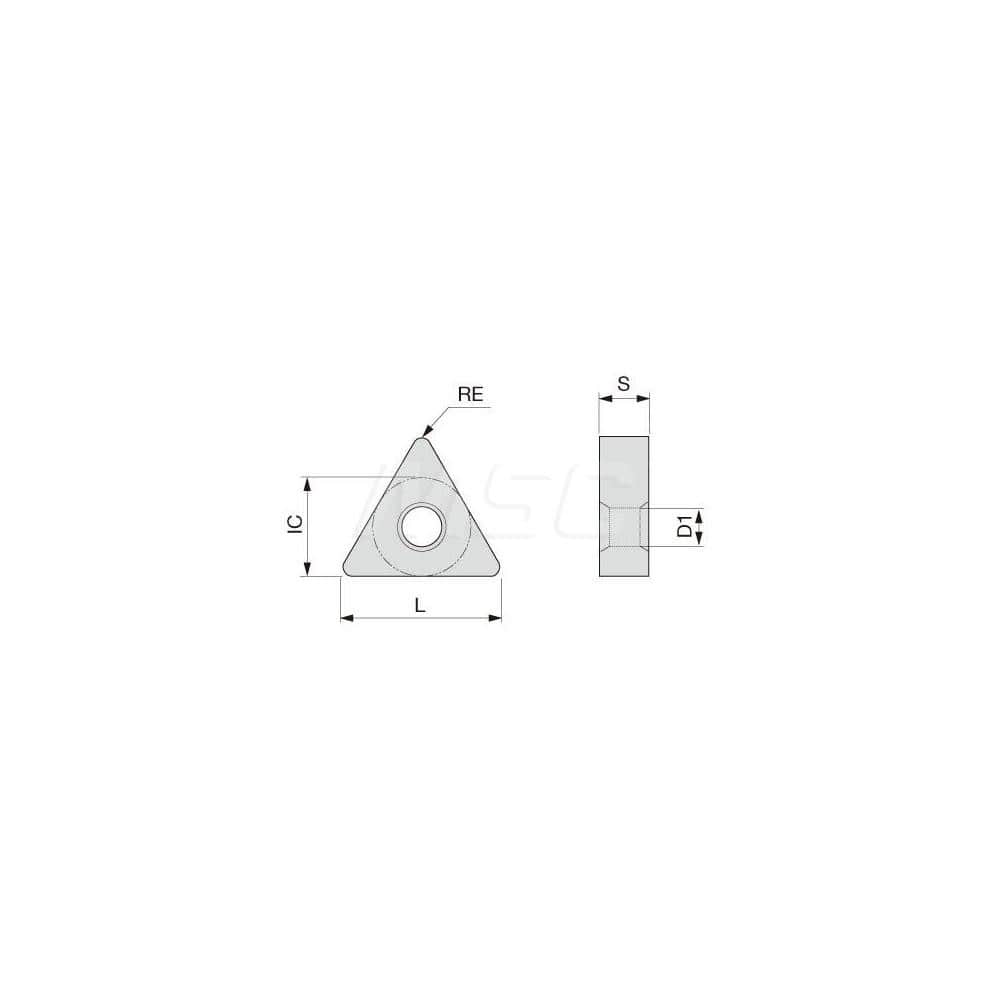

Turning Insert: TNMA433 T5105, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 1/2″ Inscribed Circle, 0.0470″ Corner Radius, 60.0 ° N/A Triangle, Series TNMA
Item #: 91301994
Brand: Tungaloy
Model #: 6850321
Product Specifications
| Insert Style | TNMA |
| Insert Size Code | 433 |
| Insert Shape | Triangle |
| Insert Material | Solid Carbide |
| Manufacturer Grade | T5105 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Included Angle | 60.0 |
| Relief Angle | 0 |
| Series | TNMA |
| Coating Process | CVD |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 6 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | TNMA433T5105 |
| Iso Code | TNMA220412 T5105 |
| Chip Breaker | FT |
| Coating/Finish | TiCN; TiN; Al2O3 |
