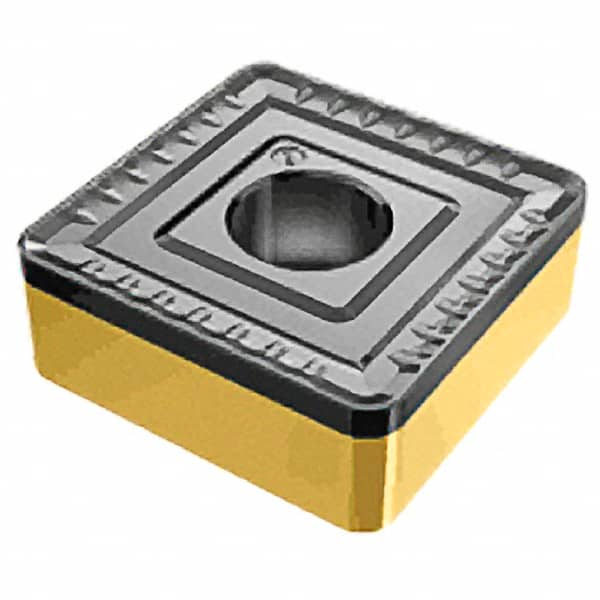

Iscar - SNMM866 H3P Grade IC8150 Carbide Turning Insert - TiCN/Al2O3 Finish, 90° Square, 1" Inscr Circle, 3/8" Thick, 3/32" Corner Radius
Item #: 91141929
Brand: Iscar
Model #: 5509340
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMM |
| Insert Size | 866 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Inscribed Circle (Inch) | 1 |
| Thickness (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.3750 |
| Corner Radius (Inch) | 3/32 |
| Corner Radius (Decimal Inch) | 0.0938 |
| Manufacturer's Grade | IC8150 |
| Coating | TiCN/Al2O3 |
| Chip Breaker | H3P |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 90 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Insert Holding Method | Pin & Clamp |
| Shape | Square |
