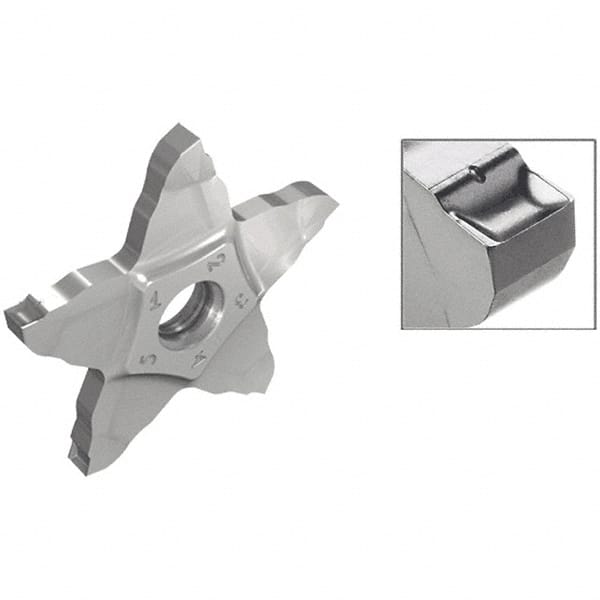

Iscar - PENTA PB IC908 Grade, 0.118" Cutting Width, Carbide Cutoff Insert - 6° Right Hand Lead Angle, 0.008" Cnr Rad, TiAlN Coated, Other End
Item #: 91124503
Brand: Iscar
Model #: 6004429
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | PENTA |
| Lead Angle Direction | Right Hand |
| Lead Angle | 6 |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1180 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Series | PentaCut |
| Relief Angle | 7 |
| Chipbreaker | PB |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (mm) | 0.20 |
| Insert Holding Method | Screw |
