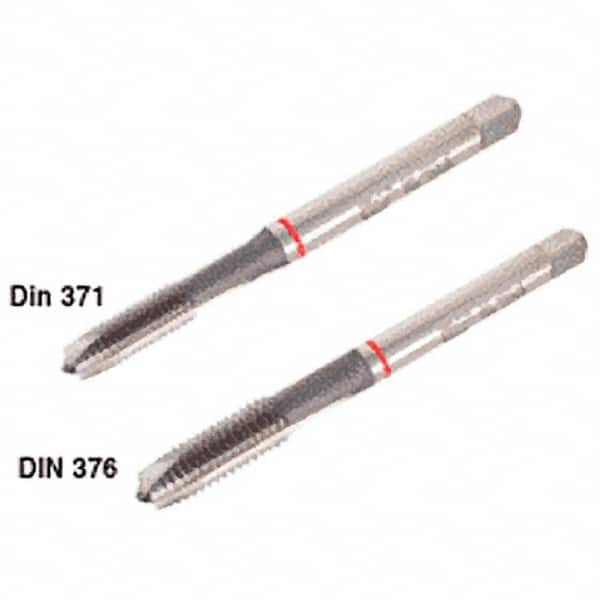

Iscar - M2.5x0.45 Metric Coarse 6H 3 Flute High Speed Steel Straight Flute Machine Tap - Plug, Right Hand Thread, 50mm OAL, 9mm Thread Length, Oversize
Item #: 91102186
Brand: Iscar
Model #: 4445164
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and designed for efficiently threading through and blind holes. They have 3 to 5 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (mm) | M2.5x0.45 |
| Class of Fit | 6H |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Material | High Speed Steel |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric Coarse |
| Overall Length (mm) | 50.00 |
| Oversize | No |
| Series/List | TP8 |
| Thread Length (mm) | 9.00 |
| Shank Diameter (mm) | 2.80 |
| Square Size (mm) | 2.10 |
| Material Application | Hardened Steel; High Temperature Alloys |
