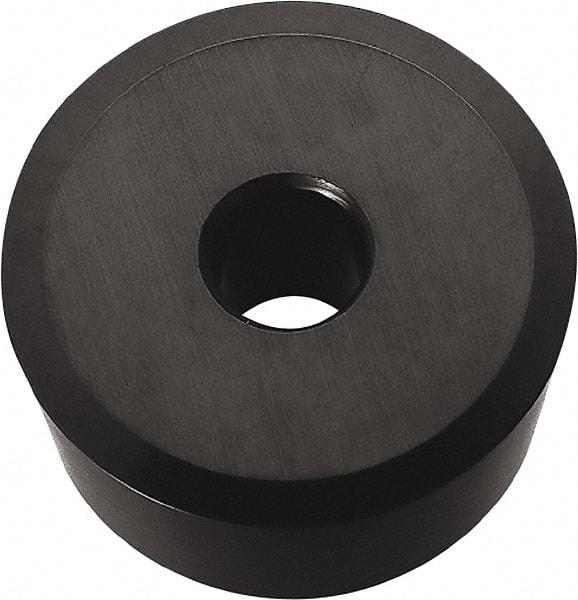

Kyocera - RCMA88 Grade A65 Ceramic Turning Insert - Uncoated, Round, 1" Inscr Circle, 1/2" Thick
Item #: 89913198
Brand: Kyocera
Model #: 8850111
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | RCMA |
| Insert Size | 88 |
| Material | Ceramic |
| Inscribed Circle (mm) | 25.40 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Inscribed Circle (Inch) | 1 |
| Thickness (Inch) | 1/2 |
| Thickness (Decimal Inch) | 0.5000 |
| Manufacturer's Grade | A65 |
| Coating | Uncoated |
| Hole Diameter (Decimal Inch) | 0.2660 |
| Relief Angle | 6 |
| Manufacturers Catalog Number | RCMA88T08015625AA A65 |
| Primary Workpiece Material | K |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Round |
